10"-Carbon Steel Tubular Self Cleaning Filter
Basic Information
Model
JX-GD-W10-Carbon Steel
Unit
set
Category
Tubular Self Cleaning Filter
Delivery Time
30 Days
Package Size
550x800x1710 mm
Package Weight
295 KG

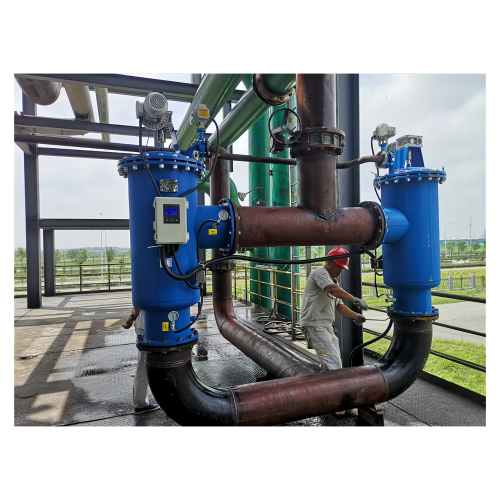

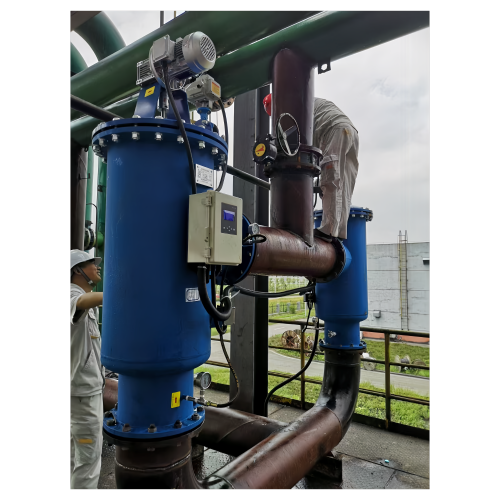

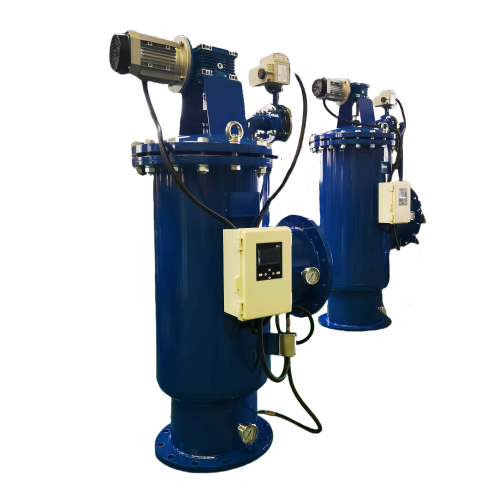

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GD-10 | — | — |
| Feeding Capacity | Refer to the specification in the price list | m3/h | — |
| Material | Carbon Steel | — | — |
| Design Pressure | 1.0 | MPa | — |
| Testing Pressure | 0.6 | MPa | — |
| Water Loss | <0.1 | MPa | In cleaning state, clean water |
| Equipment Weight | ~230 | KG | — |
| Equipment Size | ~450*700*1606 | mm | — |
Filter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | Customized | — | — |
| Filter Screen Type | Wedge wire screen | — | — |
| Qty of Filter Screen | 1 | — | — |
| Drum Diameter | Refer to the specification in the price list | — | — |
Pipe Diameter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN250 | — | — |
| Outlet | DN250 | — | — |
| Drain | DN50 | — | — |
| Flange Standard | ANSI/JIS/GB | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 0.37 | KW | — |
| Power Supply | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Motor Brand | Nord/SITI | — | — |
| Electromagnetic Valve | Brand: Chinese famous brand | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | IP55/IP65 | — | — |
| Control System | Siemens PLC integrated with 7" Siemens touch panel | — | — |
| Control Method | Automatic control system, including manual control, time control and difference Pressure Control | — | — |
| Cleaning Time | 60 | s | — |
