A Customized Vacuum Drum Filter Solution for Strong Acid Leaching Process

A customer from the mining industry recently contacted us for a continuous vacuum filtration system to separate solids from a strong acidic leaching solution.
The project involved using hydrochloric acid (HCl) to leach minerals from ore, followed by filtration to separate the solid residue from the valuable leaching liquid. Due to the highly corrosive nature of the process and the requirement for continuous operation, the customer needed a reliable filtration solution with corrosion resistance and fully enclosed operation.

Customer Requirements

• Application: Mineral leaching solid-liquid separation
• Material: Hydrochloric acid solution (HCl)
• Capacity: 0.03 m³/h
• Particle size: Around 10 microns or larger
• Operation: Fully enclosed continuous filtration system

The customer required a corrosion-resistant solution and requested confirmation regarding filter precision, equipment material, vacuum operation, pump selection, and maintenance.

Customized Filtration Solution

Based on the material characteristics, our technical team recommended a:
PP-0.5m² Vacuum Drum Filter (Model: JX-G0.5)
Key features:

• Wetted parts: PP material for corrosion resistance
• Fully enclosed system for safe operation with acidic materials
• Filter cloth precision: Customized from 1–20 microns
• Filtration method: Vacuum negative pressure operation
• Filter cake discharge: PP scraper with positive pressure air assistance

For slurry transfer, considering the acidic environment, we recommended a:
PVDF Chemical Diaphragm Pump

Technical Clarifications

The customer confirmed that the particle size was suitable for vacuum filtration. We explained that the filter cloth can be customized according to the material characteristics, and provided PP filter cloth samples for testing with their actual material.
After reviewing the filtration performance, the customer confirmed that the solution met their requirements and proceeded with the purchase.

Final Order

After successful filter cloth testing, the customer confirmed that our solution met their requirements and placed an order for the complete filtration system.
The final order included:

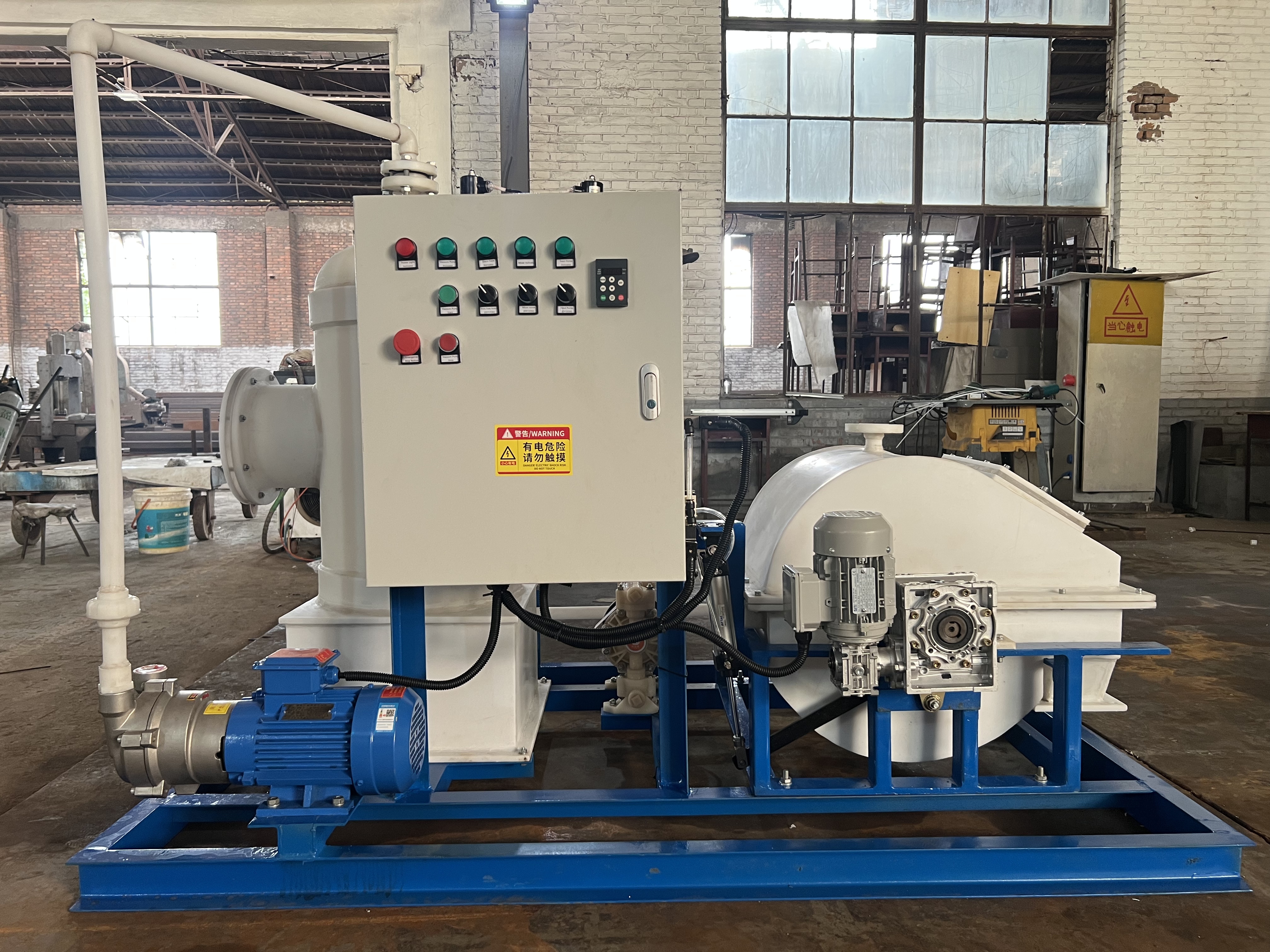

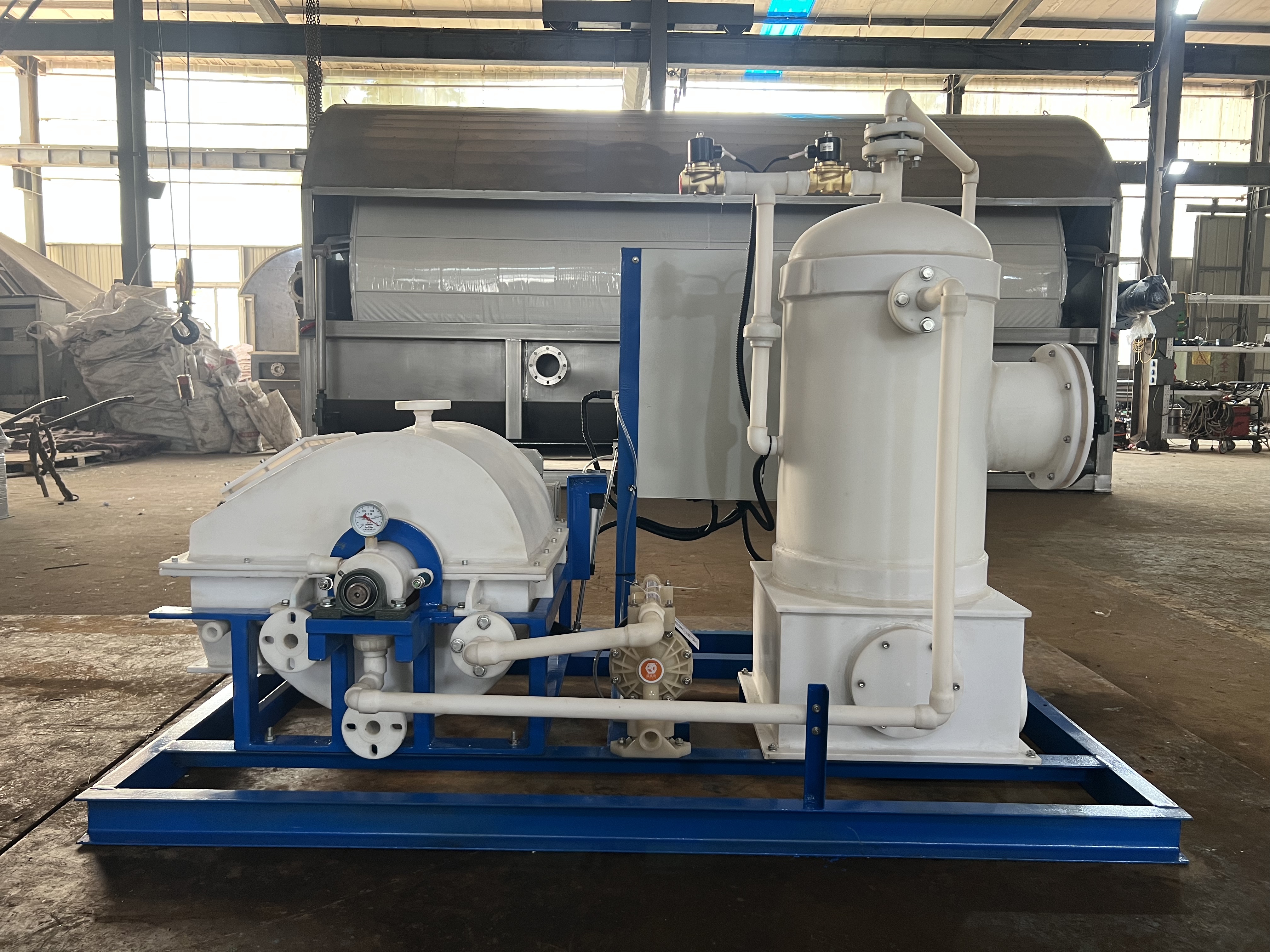

• 1 set of PP-0.5m² Vacuum Drum Filter (Model: JX-G0.5)
  • All parts in contact with the slurry are made of PP material for corrosion resistance.
• 1 set of Fully Enclosed System
  • Designed for safe operation with strong acidic materials.
• 1 unit of PVDF Chemical Diaphragm Pump
  • Selected for reliable transfer of acidic slurry.
    Video：

Successful Project Outcome

Through material testing, technical communication, and customized corrosion-resistant design, we helped the customer verify the filtration performance and successfully provided a reliable solution for their strong acid leaching process.
