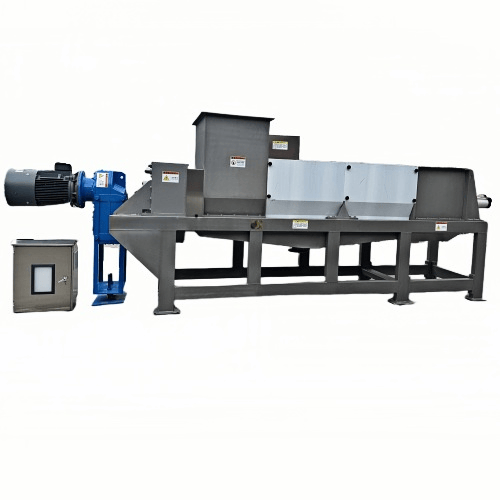

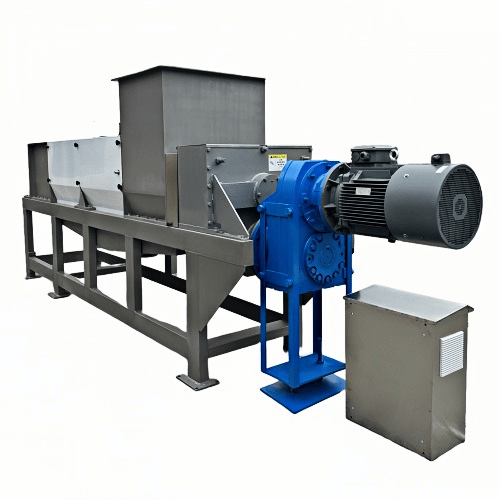

SS316-630-Single Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDZ-D630-SS316
Unit
set
Category
Plant-Based Screw Press Machine
Delivery Time
30 Days
Package Size
6000x1100x2300 mm
Package Weight
4600 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model Type | JX-ZDZ-D630 | — | — |
| Processing Capacity | ~20000-25000 | Kg/h | — |
| Material | SS316 | — | — |
| Installation Dimensions （L×W×H） | 5900*1000*2200 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding / Conveyor feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Material | SS316 | — | — |
| Screw Diameter | 630 | mm | — |
| Screw Rotation Speed | ~12-15 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Method | Wedge Wire | — | — |
| Filtration Precision | As per customer requirement | mm | — |
| Material | SS316 | — | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | Optional | — | — |
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 30KW/1.5KW | KW | — |
| Motor Brand | Siemens | — | Sino-Foreign Joint Venture |
| Power Supply | 380V / 50Hz | — | — |
| Speed | / | rpm | — |
Additional Components
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | Optional | — | — |
| Cleaning System | Internal Cleaning System | — | — |
