SS316-1500-Polymer Dosing Unit
Basic Information
Model
JX-JYH-1500-SS316
Unit
set
Category
Dosing system
Delivery Time
30 Days
Package Size
2230x1490x1910 mm
Package Weight
830 KG

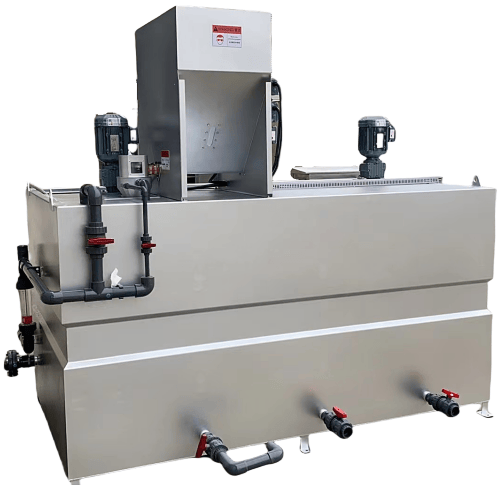

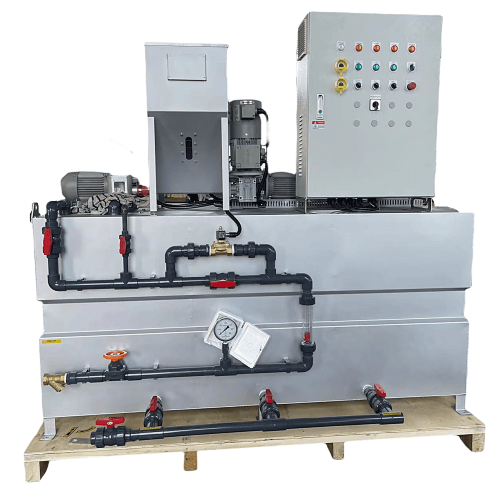

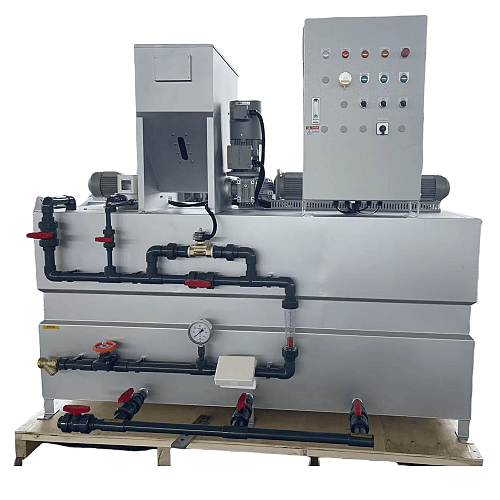

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-JYH-1500 | — | — |
| Throwing Powder | 2-10 | KG/H | — |
| Configuration Capabilities | 1500 | L/H | The curing time is 60 minutes |
| Main Material | SS316 | — | — |
| Installation Dimensions | 2130mm(L)×1070mm(B)×1810m(H) | mm | — |
composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Tank | SS316 | — | — |
| Speculation | SS316 | — | — |
| System Pipe Accessories | DN32 | — | — |
| Mixer (including shaft and impeller) | SS316 | — | — |
| Liquid Level Controller | SS316 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | fully automatic | — | — |
| Electric Control Box | Carbon steel spray | — | — |
| power Supply | 380V/50HZ, customized | — | — |
| Mixing Power | 0.37 *3 | KW | — |
| Motor Power | 0.18 | KW | — |
| Reducer | Congli, Hengxing or other well-known brands | — | — |
