SS316-1500*6000-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-1500*6000-SS316
Unit
set
Category
1500-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
8300x2000x2400 mm
Package Weight
7100 KG

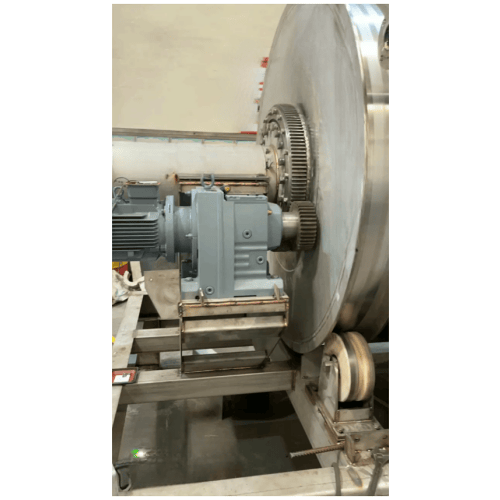

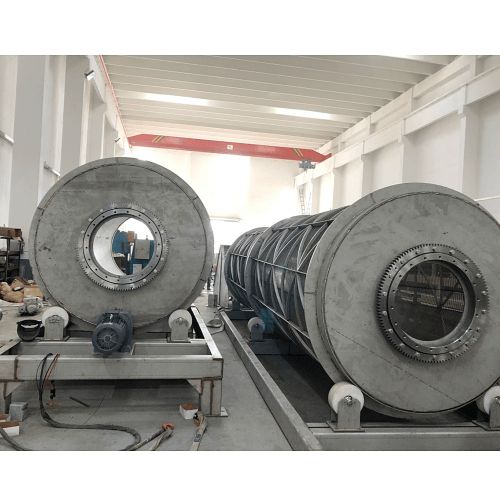

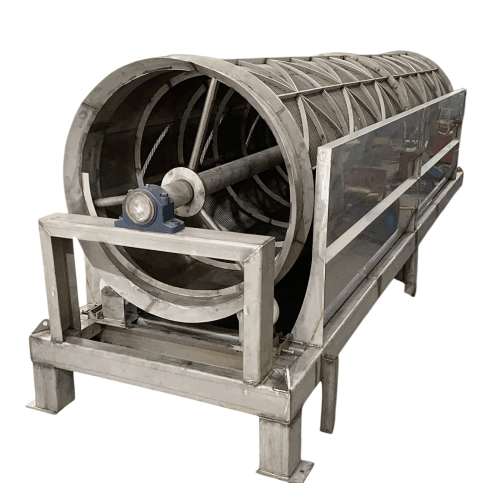

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-1500 | mm | — |
| Size | Ф1500*6000 | mm | — |
| Filtering area | 28.26 | m2 | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| Main Material | SS316 | — | — |
| Equipment Weight | 6950 | KG | — |
| Installation Size | 6527*1860*2200 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Perforated, Wedge, Woven, Sintered | — | — |
| Filter Precision | Customizable | mm | — |
| Filter Material | SS316 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Automatic/Manual | — | — |
| Power | 3 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | 6 | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | As per customer drawing | — | — |
| Outlet | As per customer drawing | — | — |
| Backwash cleaning pipe | As per customer drawing | — | — |
