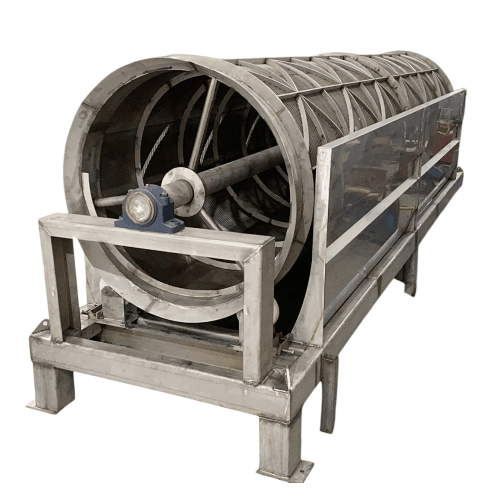

SS316-1500*4000-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-1500*4000-SS316
Unit
set
Category
1500-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
5800x2000x2400 mm
Package Weight
5698 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-1500 | mm | — |
| Size | Ф1500*4000 | mm | — |
| Filtering area | 18.84 | m2 | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| Main Material | SS316 | — | — |
| Equipment Weight | ~5550 | KG | — |
| Installation Size | 4527*1860*2200 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Wedge | — | Perforated, Wedge, Woven, Sintered |
| Filter Precision | Customizable | mm | — |
| Filter Material | SS316 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Automatic/Manual | — | — |
| Power | 3 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | 6 | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 6" | — | As per customer drawing |
| Outlet | 8" | — | As per customer drawing |
| Backwash cleaning pipe | 2" | — | — |
