SS304-5000-Automatic Dosing Device
Basic Information
Model
JX-JYH-5000-SS304
Unit
set
Category
Dosing system
Delivery Time
30 Days
Package Size
2800x1950x2330 mm
Package Weight
1800 KG

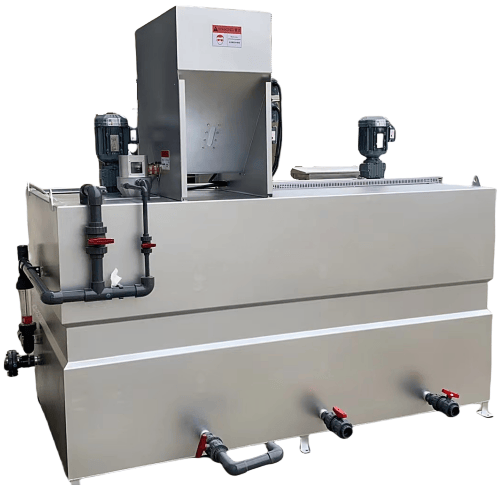

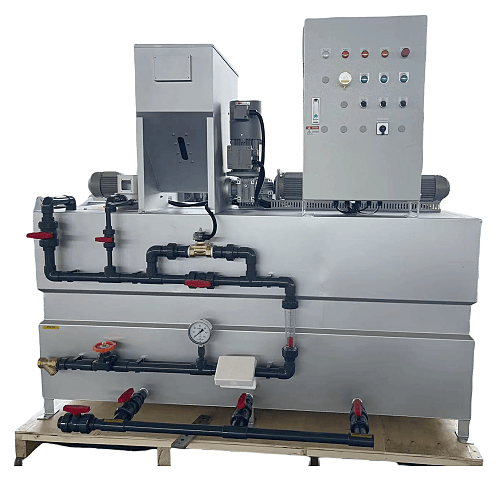

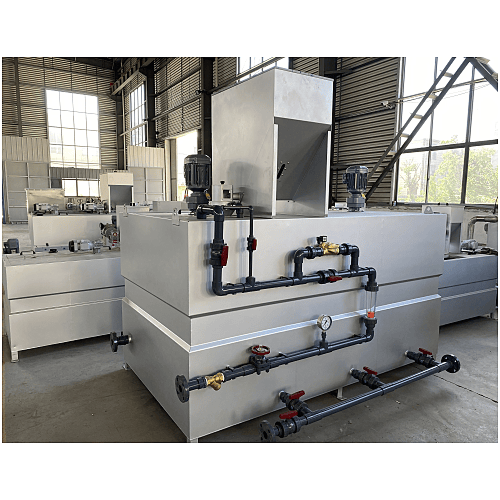

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-JYH-5000 | — | — |
| Throwing Powder | 4.5-25 | KG/H | — |
| Configuration Capabilities | 5000 | L/H | Curing time: 60min |
| Main Material | SS304 | — | — |
| Installation Dimensions | 2700*1500*2222 | mm | — |
composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Tank | SS304 | — | — |
| Speculation | SS304 | — | — |
| System Pipe Accessories | DN40 | — | — |
| Mixer (including shaft and impeller) | SS304 | — | — |
| Liquid Level Controller | SS304 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | fully automatic | — | — |
| Electric Control Box | Carbon steel spray | — | — |
| power Supply | 380V/50HZ, customized | — | — |
| Mixing Power | 1.5*3 | KW | — |
| Motor Power | 0.37 | KW | — |
| Reducer | Congli, Hengxing or other well-known brands | — | — |
| Electric heating power | 0.02 | KW | — |
