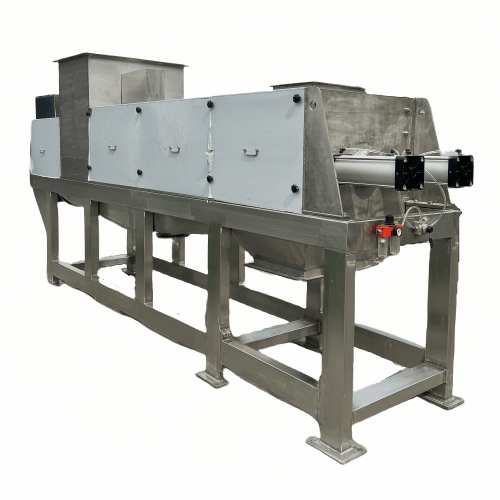

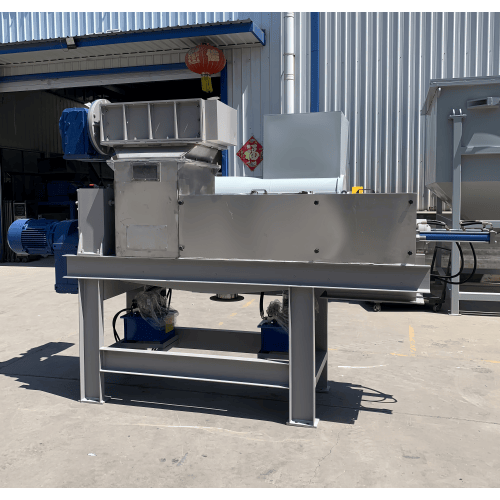

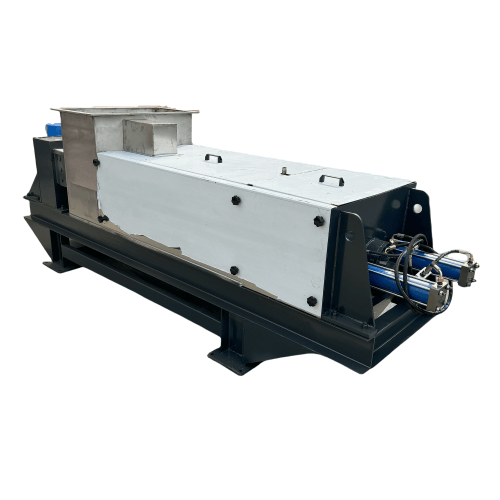

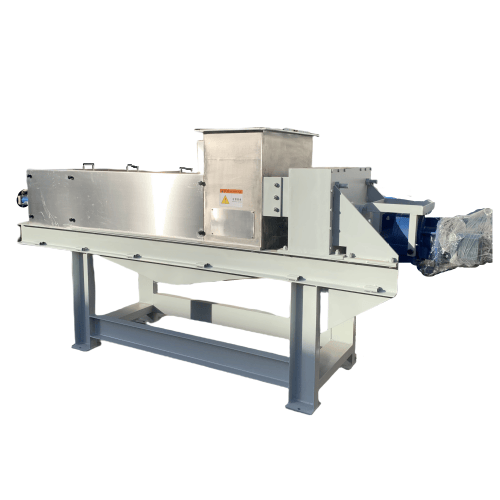

SS304-500-Twin Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDZ-S500
Unit
set
Category
Plant-Based Screw Press Machine
Delivery Time
30 Days
Package Size
4860x1360x2070 mm
Package Weight
3200 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 6000 - 10000 | Kg/h | — |
| Model Type | Twin Screw | — | — |
| Material | SS304 | — | — |
| Installation Dimensions （L×W×H） | 4760*1360*1971 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Material | SS304 | — | — |
| Screw Diameter | 500 | mm | — |
| Screw Rotation Speed | 12-15 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filtration Method | Wedge-wire screen | — | — |
| Filtration Precision | 1 | mm | Customizable |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | Pneumatic | — | Hydraulic/Manual/pneumatic |
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Speed | 15 | rpm | — |
| Motor Power | 18.5 | KW | — |
| Motor Brand | Siemens | — | — |
| Power Supply | 380V/50HZ | — | Customizable |
