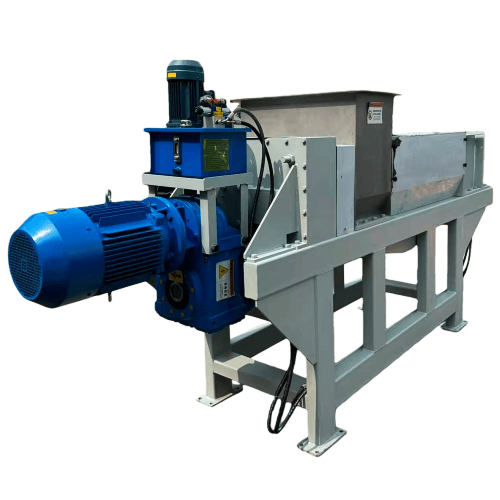

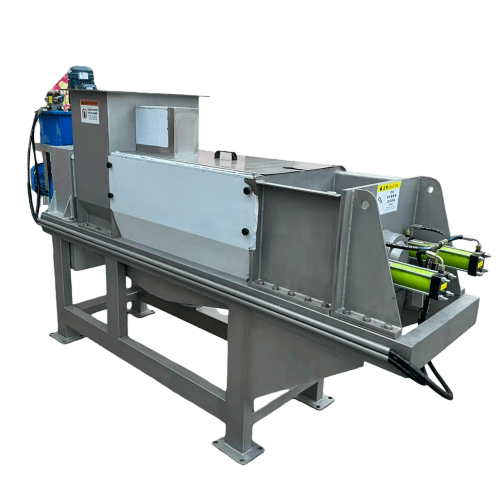

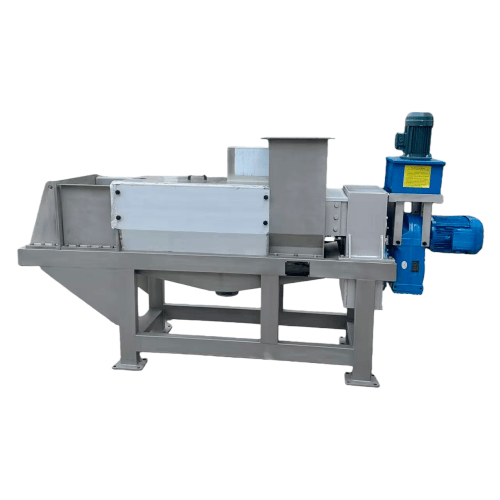

SS304-420-Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDZ-D420
Unit
set
Category
Plant-Based Screw Press Machine
Delivery Time
30 Days
Package Size
4200x1050x1950 mm
Package Weight
2450 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | ~5000 | Kg/h | — |
| Model Type | JX-ZDZ-D420 | — | — |
| Material | SS304 | — | — |
| Installation Dimensions （L×W×H） | See drawings for dimensions | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Material | SS304 | — | Bracket and frame:Carbon Steel |
| Screw Diameter | 420 | mm | — |
| Screw Rotation Speed | 15-18 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filtration Method | Wedge-wire screen | — | — |
| Filtration Precision | 1 | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | / | — | — |
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Speed | / | rpm | — |
| Motor Power | 18.5+1.5 | KW | — |
| Motor Brand | Siemens | — | — |
| Power Supply | 380V/50HZ/Customizable | — | — |
