SS304-400-Screw Press Type Solid Liquid Separator For Manure
Basic Information
Model
JX-ZDZ-D400
Unit
set
Category
Plant-Based Screw Press Machine
Delivery Time
30 Days
Package Size
4200x1000x2100 mm
Package Weight
2440 KG

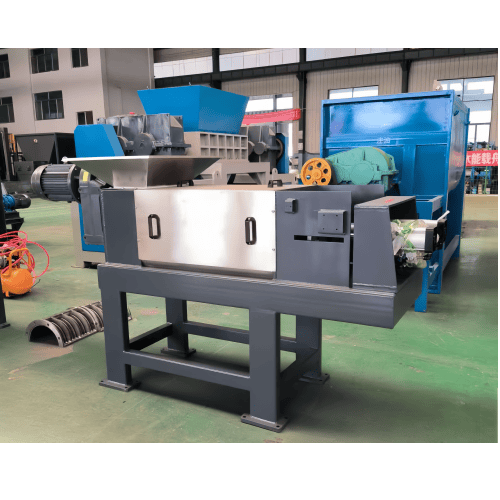

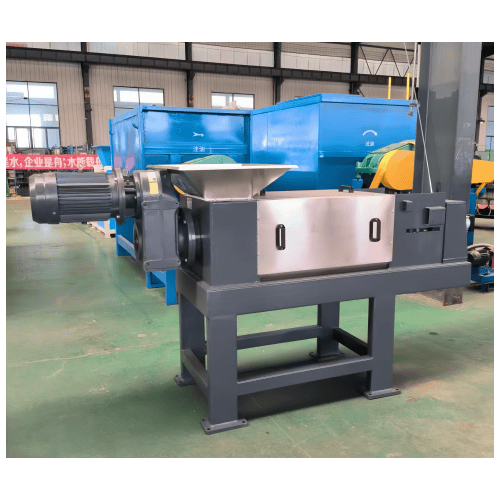

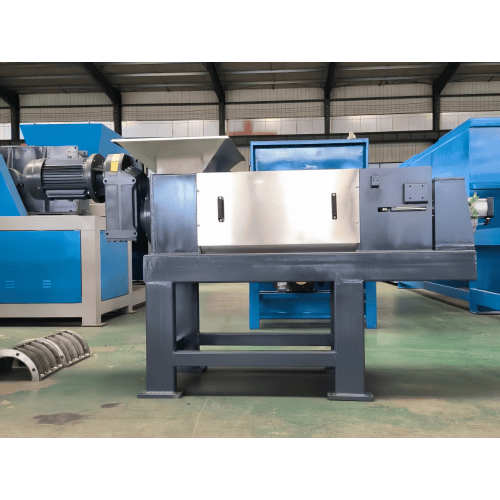

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | Refer to the specification in the price list | Kg/h | — |
| Material | Carbon steel | — | — |
| Model Type | Single-screw | — | — |
| Installation Dimensions （L×W×H） | 4100*900*1980 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Conveyor feeding | — | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Method | Wedge-wire screen | — | — |
| Filtration Precision | Refer to the specification in the price list | mm | — |
| Material | SS304 | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Material | SS304 | — | — |
| Screw Diameter | 400 | mm | — |
| Screw Rotation Speed | / | rpm/min | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | / | — | — |
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Brand | National Standard Motor (Shanghai Anli Brand) | — | — |
| Power Supply | 380V/Customizable | — | — |
| Speed | / | rpm | — |
| Motor Power | 22 | KW | — |
