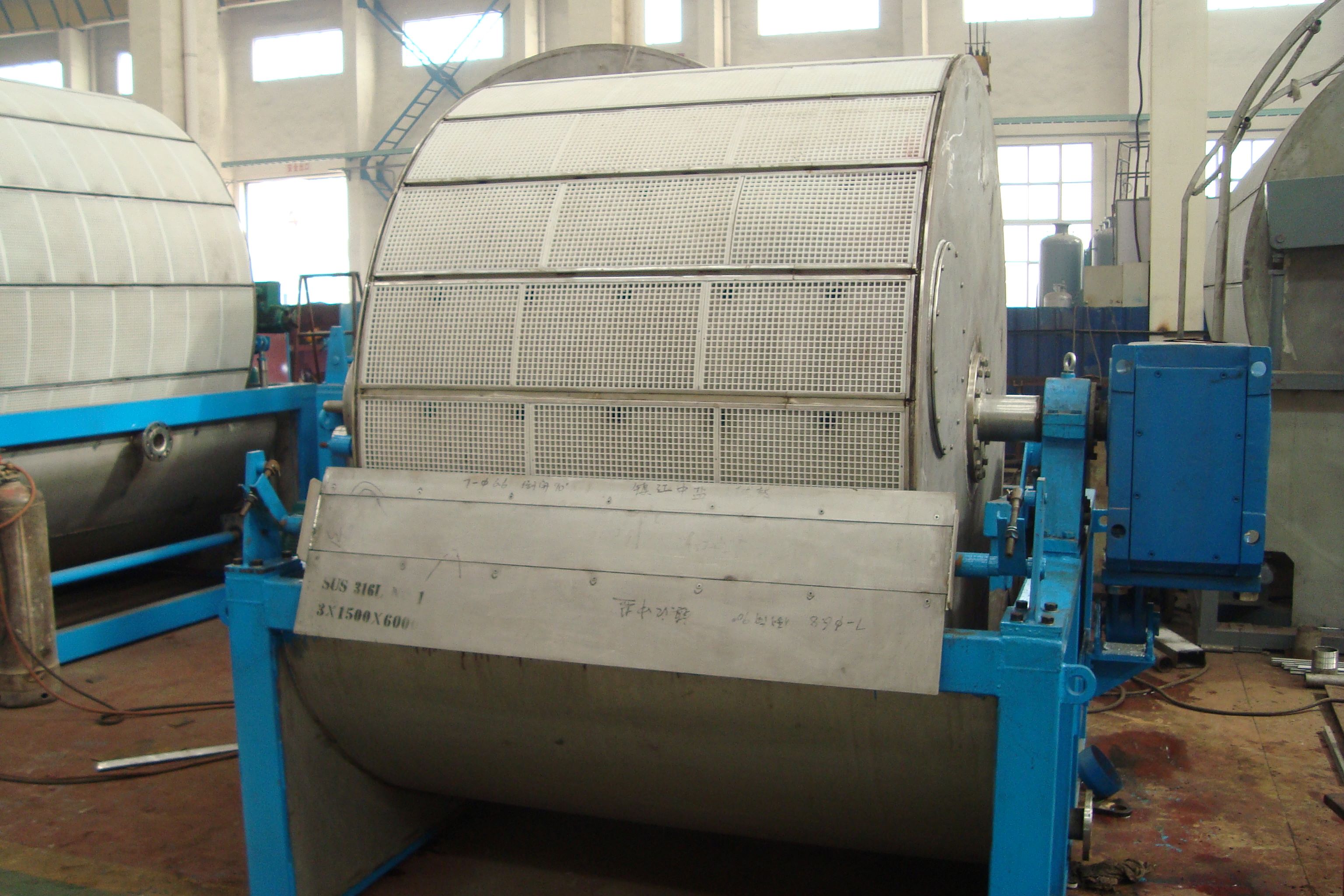

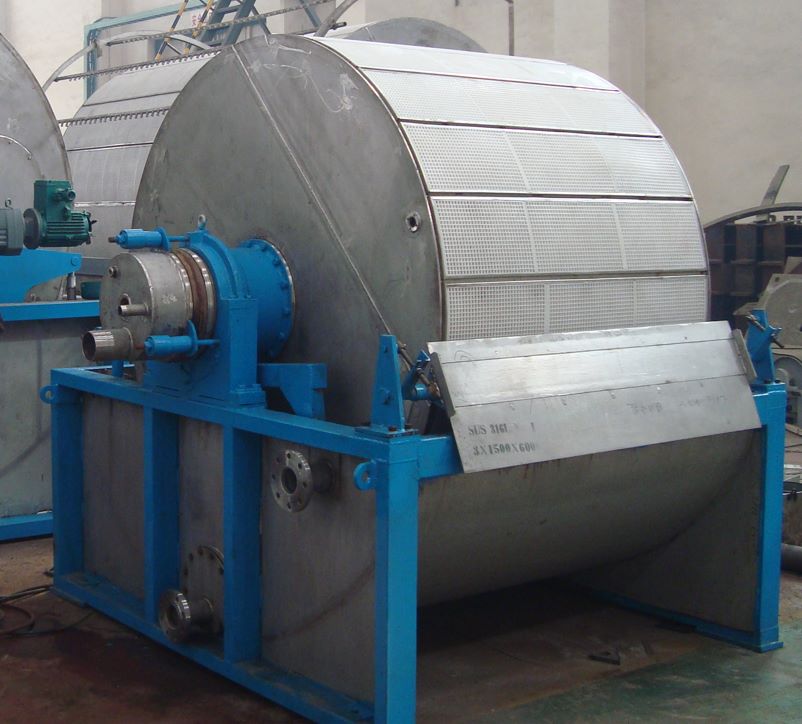

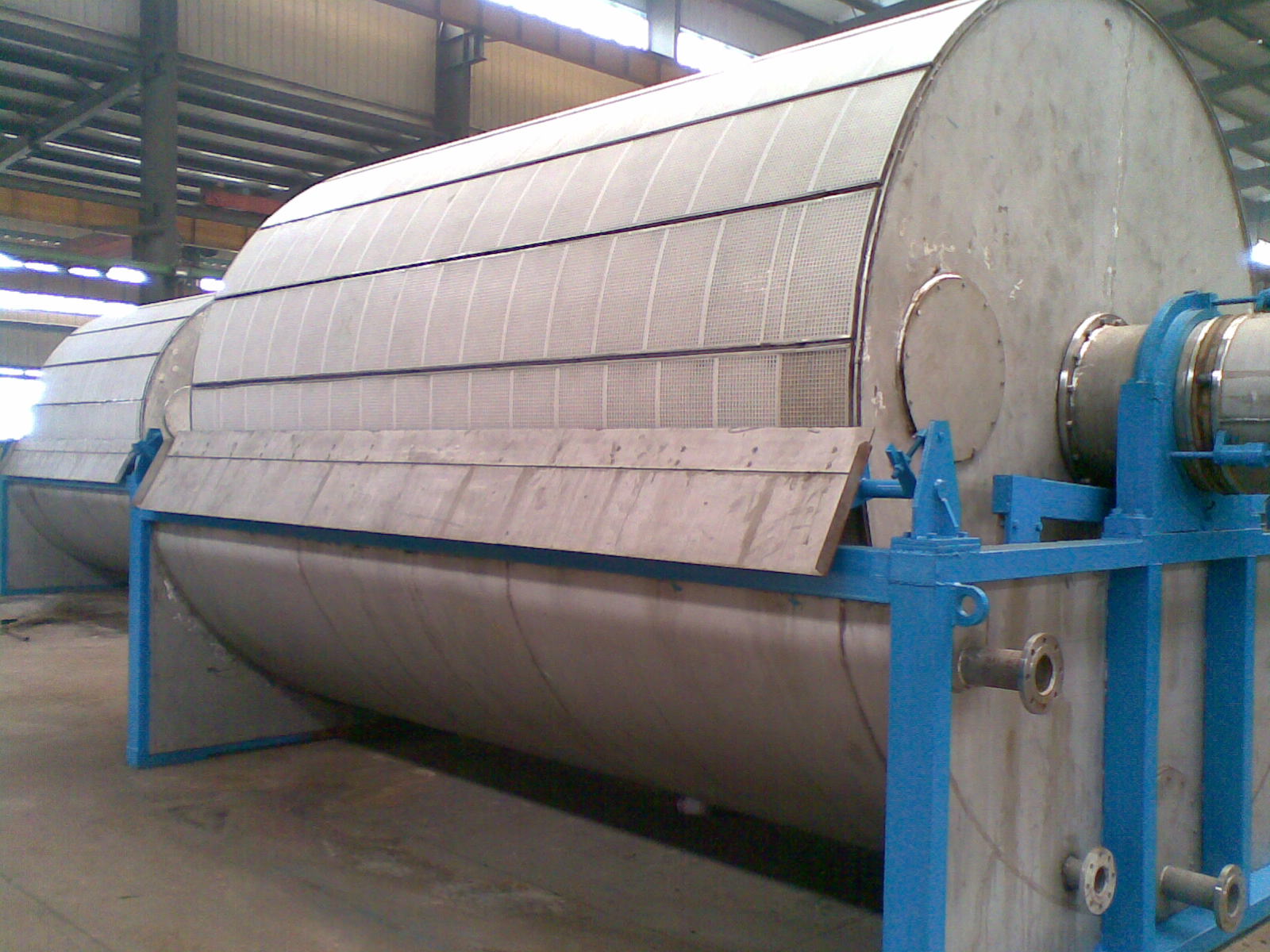

SS304-25m²-Vacuum Drum Filter
总4个包装箱： #1：刮刀真空转鼓主机，5.85米x2.28米x2.55米，重量9吨 #2：辅助设备1，1.5米x1.2米x2.3米 #3：辅助设备2，1.5米x1.2米x2.3米，两件总重量2.3吨 #4：电控箱，0.8米x0.5米x1.6米，重量0.6吨
Basic Information
Model
JX-G25-SS304
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
4800x2280x2550 mm
Package Weight
7800 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G25 | — | — |
| Vacuum Drum | 1 | — | 接触物料材质可选 |
| Vacuum Pump | 1 | — | Carbon steel (impeller: stainless steel 316/304) |
| Gas-Liquid Separator | 1 | — | Material options available for contact parts |
| Pre-coating Tank | / | — | Material options available for contact parts |
| Control Cabinet | 1 | — | — |
Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 25 | m2 | Contact Parts with Material SS304 |
| Effective Width of Filtration Surface | 4100 | mm | — |
| Drum Diameter | 1950 | mm | — |
| Drum Speed | 0.1-2.0 | r/min | Variable frequency speed regulation |
| Main Motor Power | 3.0 | — | — |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | SS304 | — | — |
| Drum Body | SS304 | — | — |
| Scraper | PP | — | — |
| Filter Cloth | PP | — | — |
Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 800 | mm | — |
| Drainage Capacity | Customizable | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1（2BE253） | — | Carbon steel (impeller: stainless steel 316/304) |
| Motor Power | 45 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Chinese brand | — | — |
| Reducer | Jiangsu Guomao Brand | — | — |
| Motor | Well-known Chinese brand | — | — |
