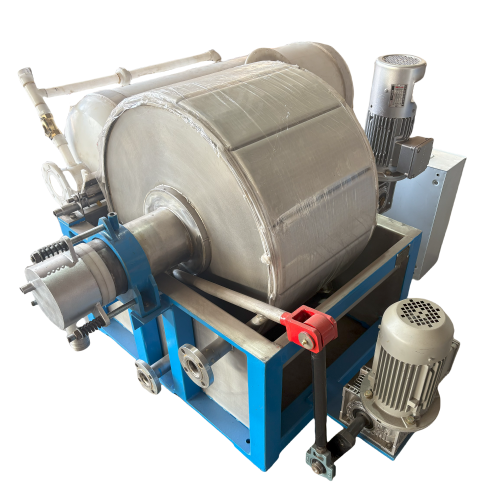

SS304-1m²-Scraper Discharge Vacuum Drum Filter
Basic Information
Model
JX-G1-SS304
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2550x1500x2100 mm
Package Weight
650 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G1 | — | — |
| Vacuum Drum | 1 | — | Material options available for contact parts |
| Vacuum Pump | 1 | — | Carbon steel (impeller: stainless steel 316/304) |
| Gas-Liquid Separator | 1 | — | Material options available for contact parts |
| Pre-coating Tank | / | — | — |
| Control Cabinet | 1 | — | — |

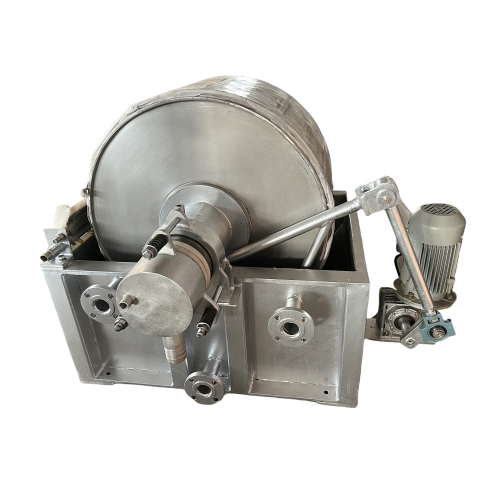

Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 1 | m2 | — |
| Effective Width of Filtration Surface | 450 | mm | — |
| Drum Diameter | 750 | mm | Frequency control |
| Drum Speed | 0.1~2.0 | r/min | — |
| Main Motor Power | 0.75 | — | — |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | SS304 | — | — |
| Drum Body | SS304 | — | — |
| Scraper | PP | — | — |
| Filter Cloth | PP | — | 2 |

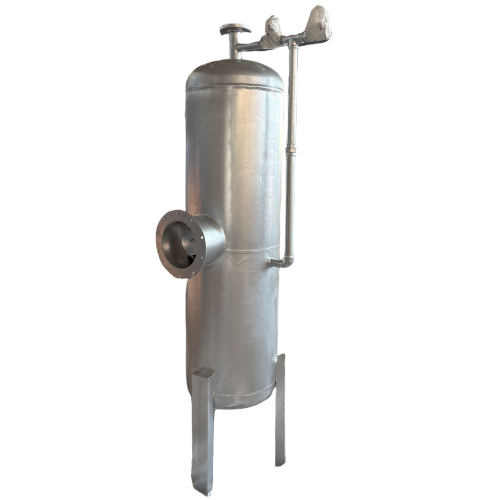

Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 400 | mm | — |
| Drainage Capacity | 5 | m³/h | — |
| Operating Pressure | ≤-0.09 | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1（2BV2071） | — | — |
| Motor Power | 3.85 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Made in China | — | — |
| Reducer | Chinese famous brand | — | — |
| Motor | Siemens | — | Non-explosion-proof type |
