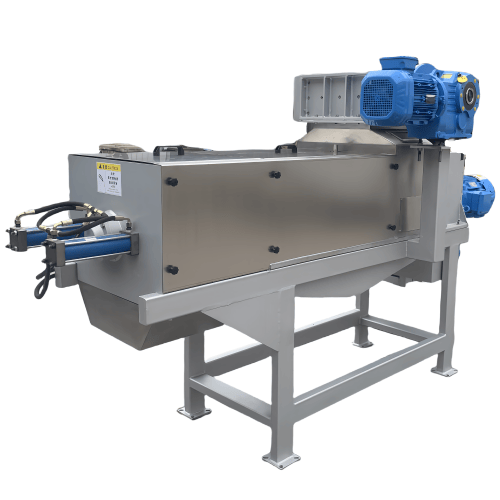

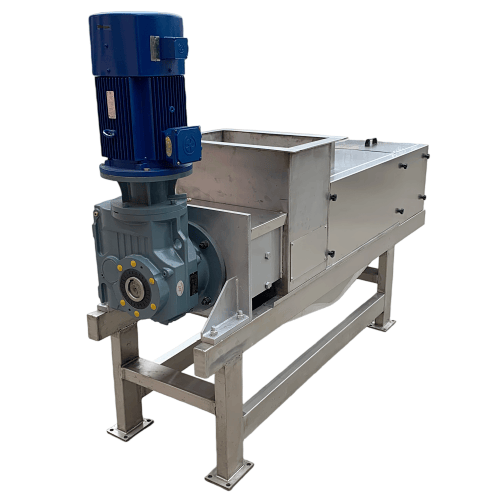

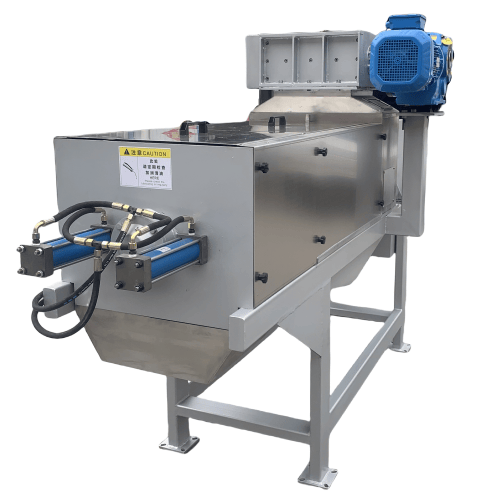

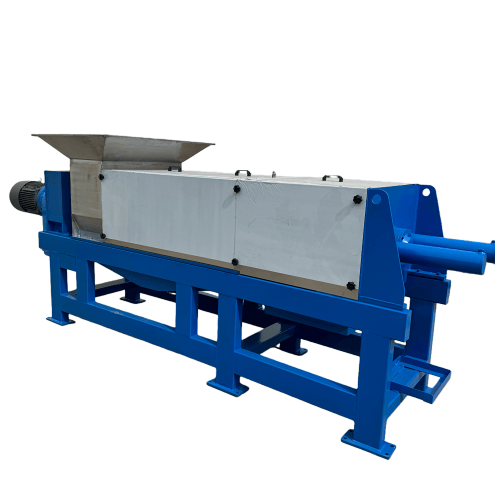

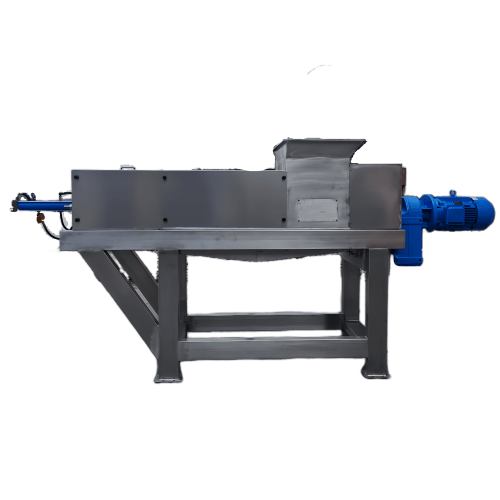

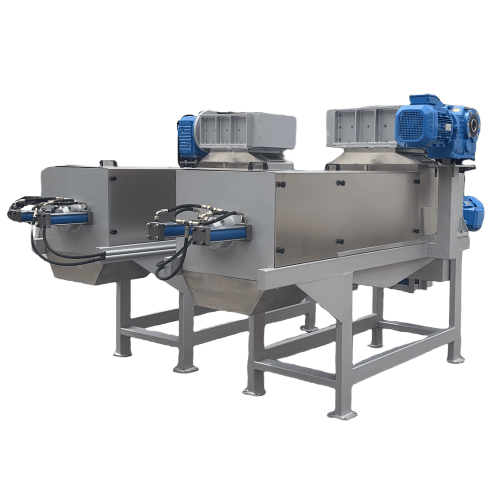

SS304-180-Twin Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDZ-S180
Unit
set
Category
Plant-Based Screw Press Machine
Delivery Time
30 Days
Package Size
1910x680x970 mm
Package Weight
400 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 200-500 | Kg/h | — |
| Model Type | JX-ZDZ-S180 | — | — |
| Material | SS304 | — | — |
| Installation Dimensions （L×W×H） | ~1804*556*870 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Material | SS304 | — | — |
| Screw Diameter | 180 | mm | — |
| Screw Rotation Speed | / | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filtration Method | Wedge-wire screen | — | — |
| Filtration Precision | Refer to the specification in the price list | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | / | — | — |
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Speed | / | rpm | — |
| Motor Power | 3 | KW | — |
| Motor Brand | Siemens | — | Sino-Foreign Joint Venture |
| Power Supply | 380V / 50Hz | — | — |
