Successful Delivery of a Mechanical Bar Screen for a UAE Wastewater Treatment Plant
We are pleased to share a recent project milestone: the design, manufacture, and delivery of a mechanical bar screen for a wastewater treatment facility in the United Arab Emirates. This installation is part of the plant’s inlet screening channel, where it plays a critical role in protecting downstream equipment by removing coarse solids from industrial wastewater.
Project Overview
- End user: Wastewater treatment plant, UAE
- Installation location: Inlet screening channel (inlet screening pool)
- Quantity: 1 unit
- Medium: Industrial wastewater
- Equipment type: Vertical chain brush filter (mechanical bar screen)
- Screen opening: 5.0 mm
- Scope of supply: Complete unit with 2 years of spare parts
- Project timeline: Involved from 2024, successfully completed in 2025
Why This Solution Was Chosen
The client required a robust, low-maintenance screening system capable of handling variable flow and debris loads typical of industrial effluent. Our vertical chain brush filter offers several advantages:
- Self-cleaning action – the brush system continuously removes captured solids, minimising clogging.
- Compact footprint – vertical design fits well in existing channel layouts.
- Durable construction – materials selected for corrosion resistance in aggressive wastewater environments.
- Easy maintenance – the chain-drive mechanism and brush assembly are designed for long service intervals.
With a screening opening of 5.0 mm, this unit effectively removes debris while maintaining a low head loss – ensuring efficient operation of the entire treatment line.
Our Involvement
We were first contacted by the client in 2024 to discuss their specific requirements. After a thorough technical review and site adaptation, we customised the bar screen to match the channel dimensions and flow conditions. The manufacturing phase was followed by factory testing, and the equipment was shipped and commissioned successfully in 2025.
Photo Gallery

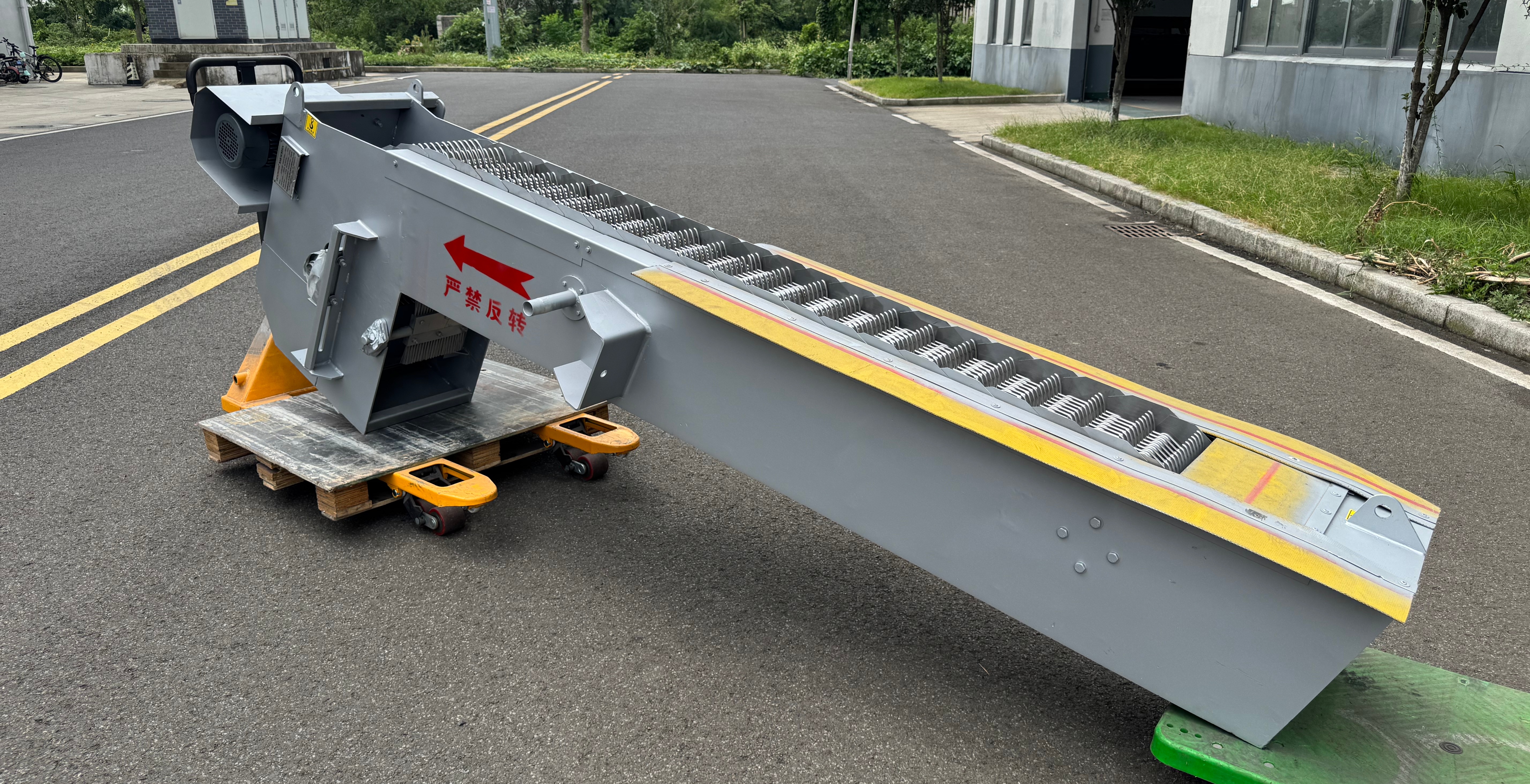

Figure 1: The completed mechanical bar screen ready for packing and shipping.

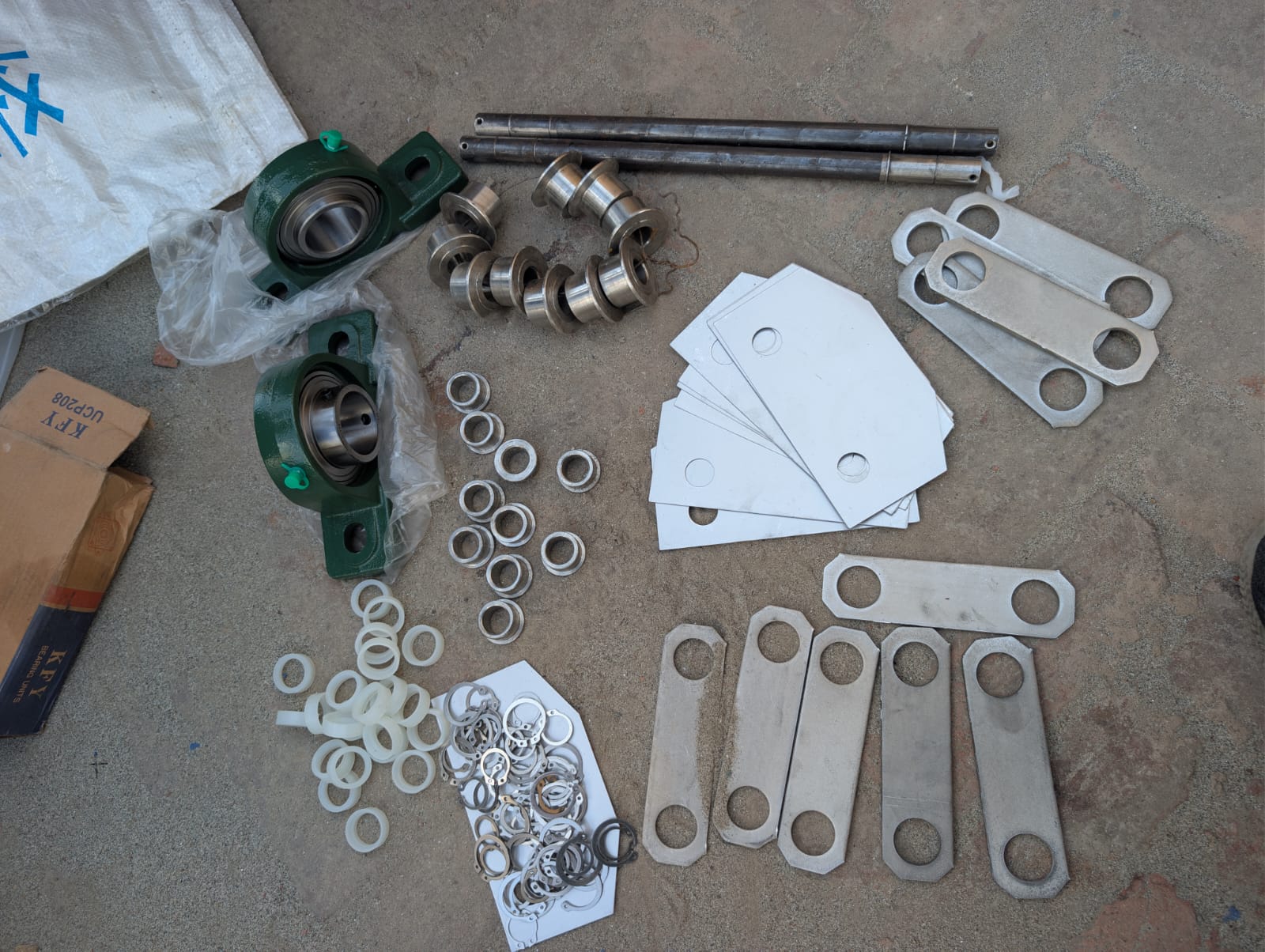

Figure 2: A full set of spare parts supplied for 2 years of operation – including brushes, chains, bearings, etc.

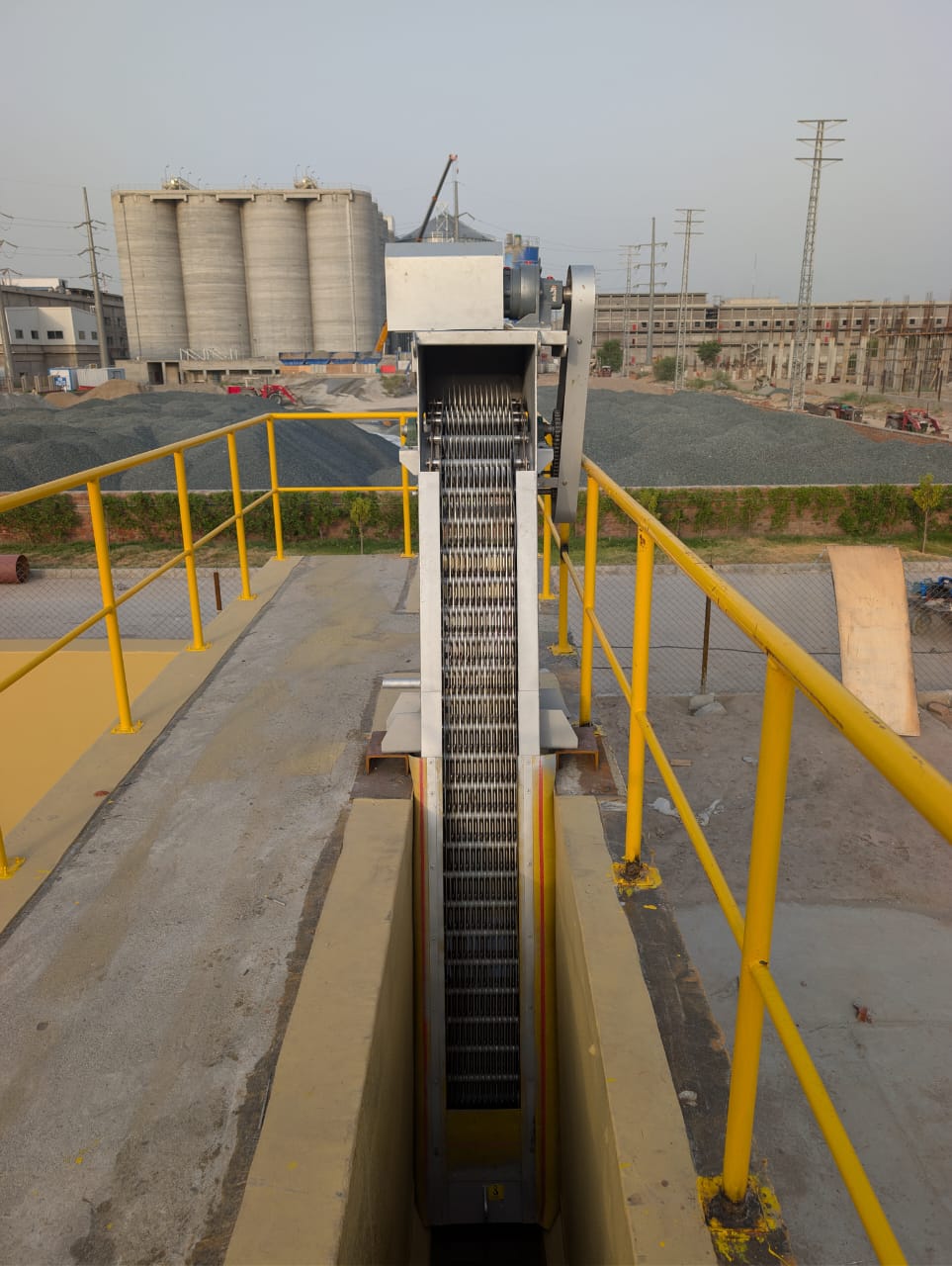

Figure 3: The unit installed at the inlet screening channel of the UAE wastewater treatment plant. We appreciate their trust in our solution and their willingness to share field photos with us.
