SS316-Z1200-Channel Microfilter
Basic Information
Model
JX-GF-Z1200-316
Unit
set
Category
Channel Drum Screens
Delivery Time
30 Days
Package Size
5800x1300x1450 mm
Package Weight
1600 KG

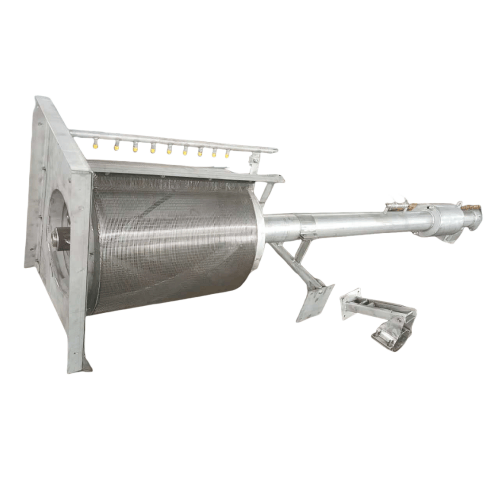

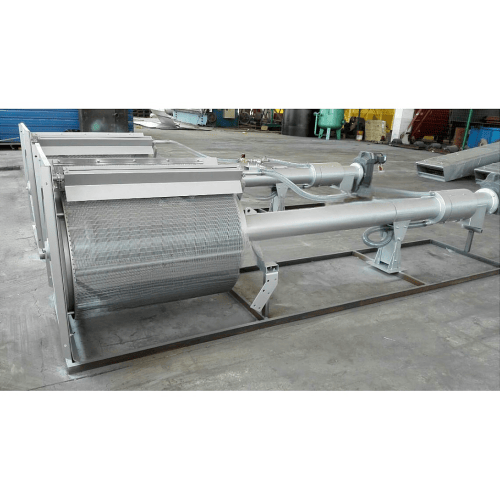

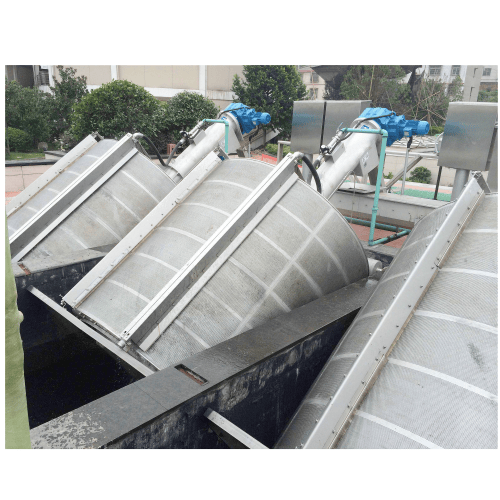

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-Z1200 | — | — |
| Housing Material | SS316 | — | — |
| Flow Rate | Refer to the specification in the price list | m3/h | — |
| Channel Width | Customized | mm | — |
| Equipment Width | 1200 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | Ф1200×5800mm | — | — |
| Screen Drum Speed | ~5 | r/min | — |
| Screen Drum Slot Size | 3/Customized | mm | Woven；Customized |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Backwash cleaning pipe | As per customer drawing | — | — |
| Drive Motor | 1.1 | KW | — |
