SS316-500*600-Externally Fed Rotary Drum Screen
Basic Information
Model
JXLW-500
Unit
set
Category
Externally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
1300x900x1500 mm
Package Weight
380 KG

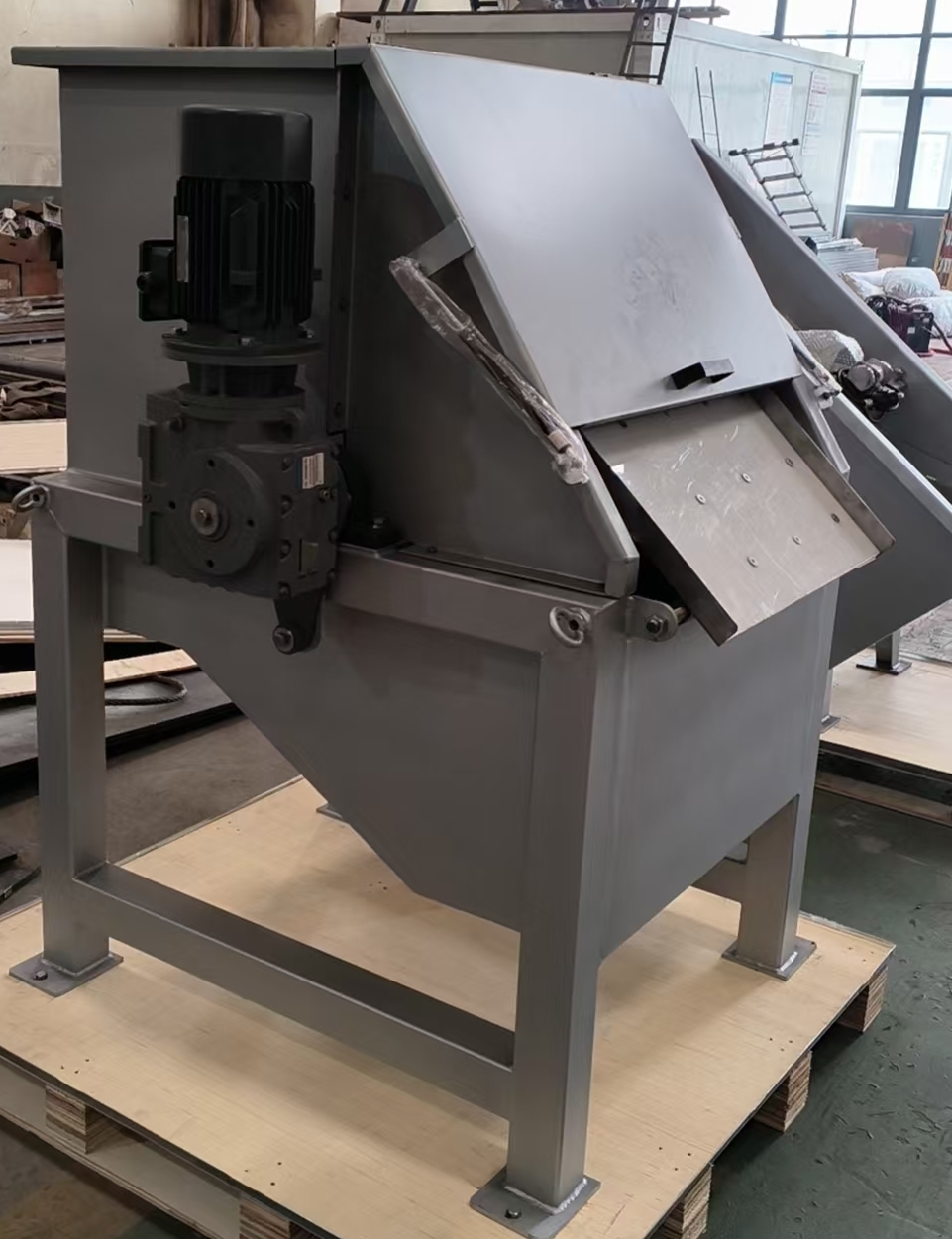

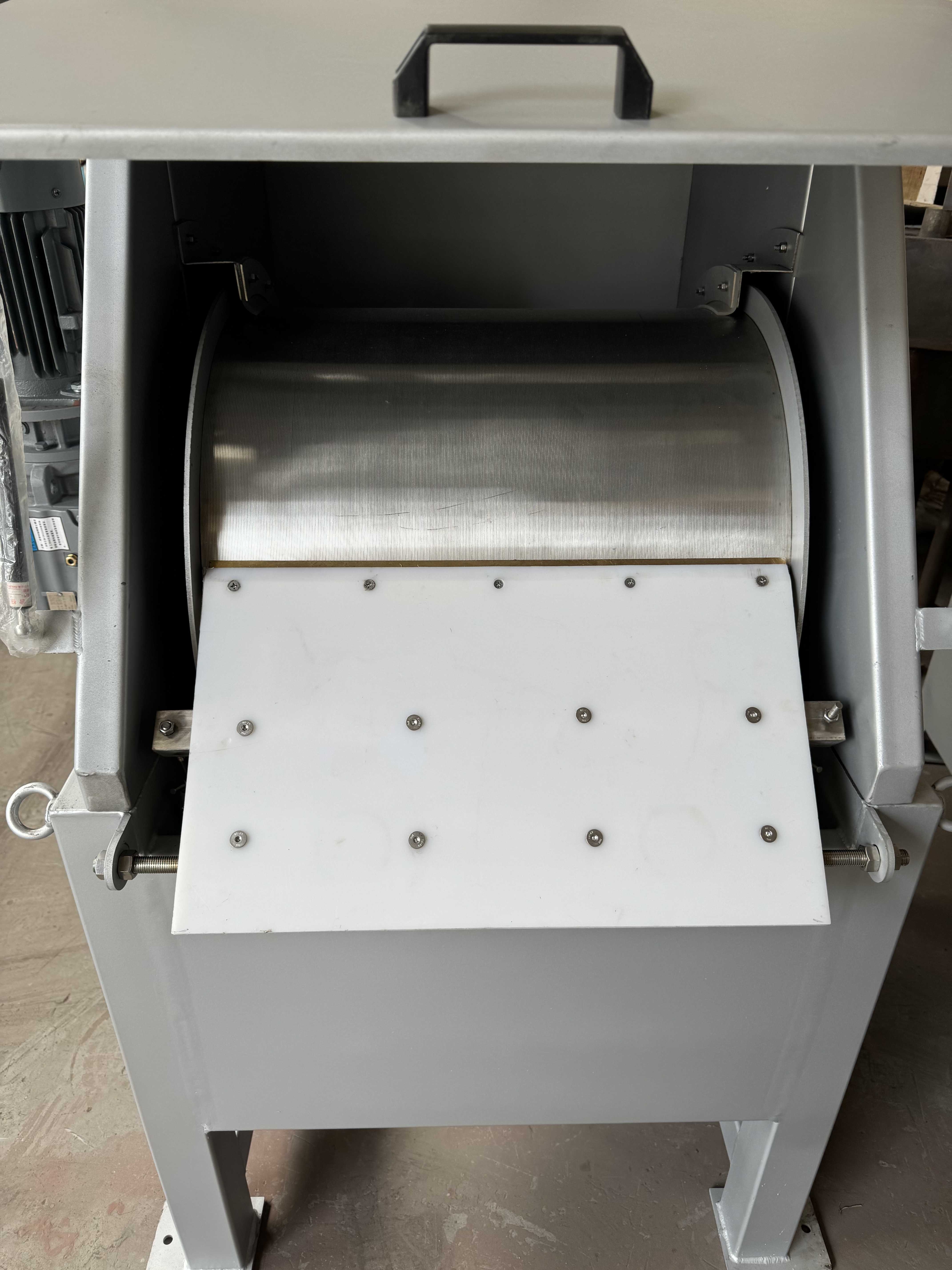

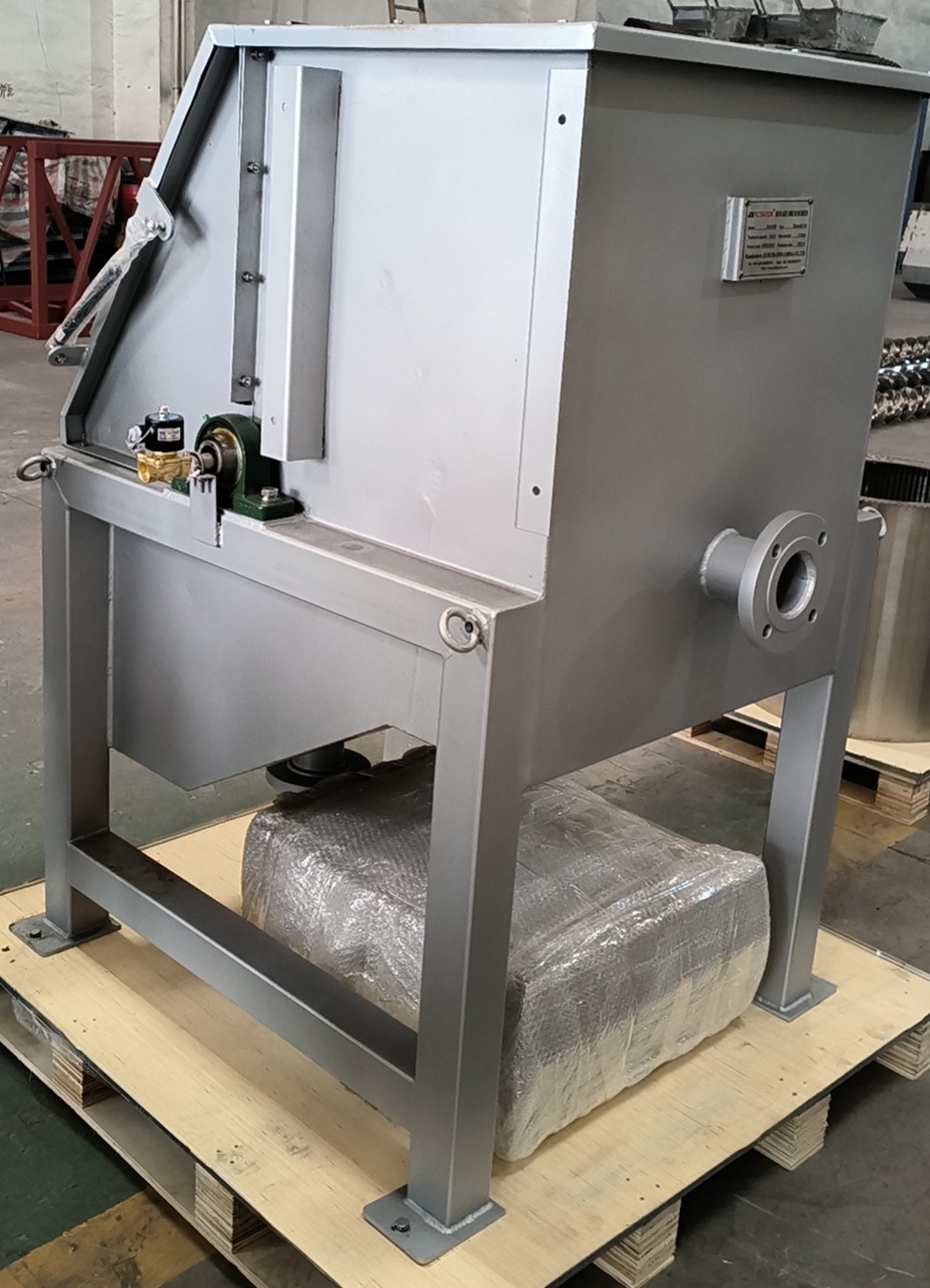

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum screen size | Ф500×600 | mm | — |
| Treatment capacity | Refer to the specification in the price list | m3/h | — |
| Inlet requirement | According to the raw water | — | — |
| Outlet requirement | Solid content: below 0.5mm | — | — |
| Water inlet | 2 inches | — | — |
| Water outlet | 2 inches | — | — |
| Rotary speed | 12 | rpm | — |
| Slot size | Refer to the specification in the price list | mm | — |
| Cleaning water pipe | 1 inch | — | — |
| Cleaning water pressure | 0.6 | MPa | — |
| Total power | 0.55 | kw | — |
| Overall size | 800x1200x1400 | mm | — |
Price
$7620
per set
