SS316-450-Automatic Backwash Filter
Basic Information
Model
JX-XF-450
Unit
set
Category
Automatic Backwash Filter
Delivery Time
30 Days
Package Size
1040x900x1920 mm
Package Weight
450 KG

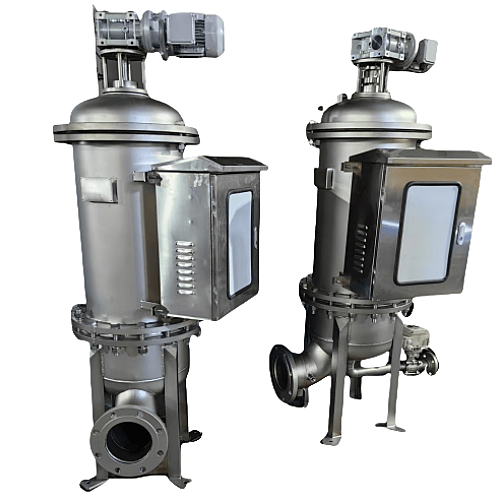

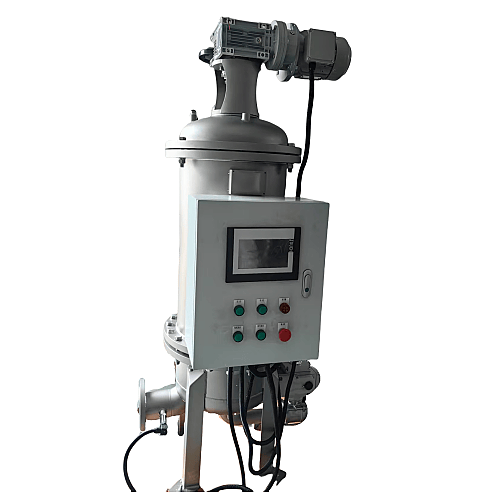

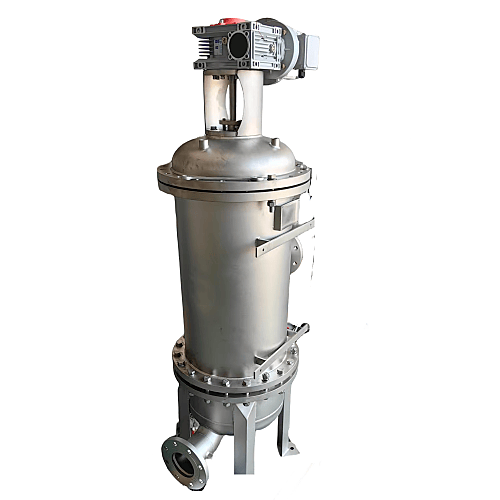

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Refer to the specification in the price list | Kg/h | — |
| Housing Material | SS316 | — | — |
| Working Pressure | 0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Water Loss | <0.01 | Mpa | In cleaning state, clean water |
| Installation Size | See drawing | mm | — |
Pipeline Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 8" | — | Customizable |
| Outlet | 8" | — | Customizable |
| Drain | 1 1/2" | — | Customizable |
| Flange Standard | ANSI/JIS/GB | — | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Qty of Filter Screen | 10 | — | — |
| Filter Screen Material | SS316 | — | — |
| Filter Screen Type | Optional-Wedge wire screen/perforated screen/Sintereted Screen | — | Customizable |
| Filtration Degree | Customizable | — | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cleaning Method | Backwash | — | — |
| Drain Valve | Pneumatic / Electric | — | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 0.37 | — | — |
| Power Supply | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Motor Brand | Nord/SITI | — | — |
| Pressure Transmitter | Differential Pressure | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | IP55/IP65 | — | — |
| Control System | Siemens PLC integrated with 7" Siemens touch panel | — | — |
| Control Method | Differential Pressure /Time | — | — |
