SS316-1200-Vibrating Screen Machine
Basic Information
Model
JX-RVS-1200-1
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
1300x1300x1000 mm
Package Weight
210 KG

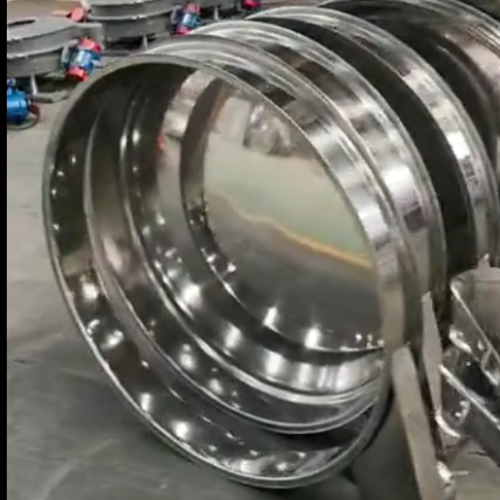

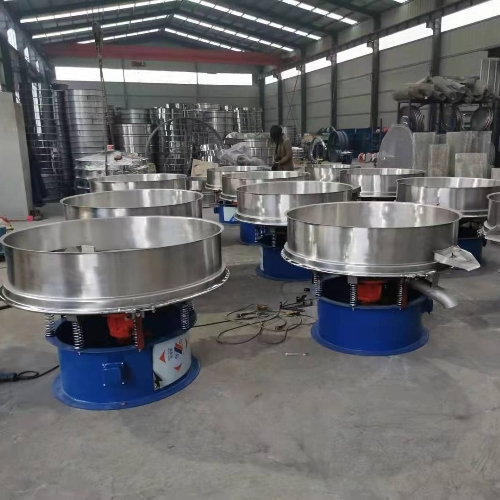

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-1200-1 | — | — |
| Material | SS316 | — | — |
| Production Capacity | Refer to the specification in the price list | — | — |
| Screening Material | / | — | — |
| Dynamic Load | 1000 | N | — |
| Static Load | 3400 | N | — |
| Excitation Force | / | KN | — |
| Double Amplitude | / | mm | — |
| Dimensions (L*W*H) | 1200*1200*900 | mm | — |
| Total Weight | ~185 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф1200 | — | — |
| Number of Screen Layers | 1 | — | — |
| Screening Area | 1.0028 | m2 | — |
| Screen Mesh Specification | woven screen | — | — |
| Screen Mesh Structure | woven screen | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | YZUL15-4 | — | — |
| Power | 1.1 | KW | — |
| Speed | 1500 | rpm | — |
| Motor | 380V 50HZ | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | SS316 | mm | Thickness: 1.0mm Mirror polishing |
| Upper Frame | SS316 | mm | Thickness: 2.0mm Mirror polishing |
| Lower Frame | SS316 | mm | Thickness: 2.0mm Mirror polishing |
| L-shaped Mesh Frame | SS316 | — | — |
| Bearing | Zhejiang Tianma (Well-known Chinese Brand) | — | — |
| Vibration Body | SS316 | — | Thickness: 6.0mm Mirror polishing |
| Base | SS316 | — | Thickness: 3.0mm Mirror polishing |
| Skirt | SS316 | — | — |
| Spring | Galvanized iron spring | — | 18 |
| Sealing Ring | Silicone rubber | — | — |
| PU Ring (per layer) | / | — | — |
| Anti-blocking Mesh Bouncing Balls (per layer) | / | — | — |
Price
$4095
per set
