SS304-Z500-Channel Drum Screens
Basic Information
Model
JX-GF-Z500-SS304
Unit
set
Category
Channel Drum Screens
Delivery Time
30 Days
Package Size
4000x700x900 mm
Package Weight
480 KG

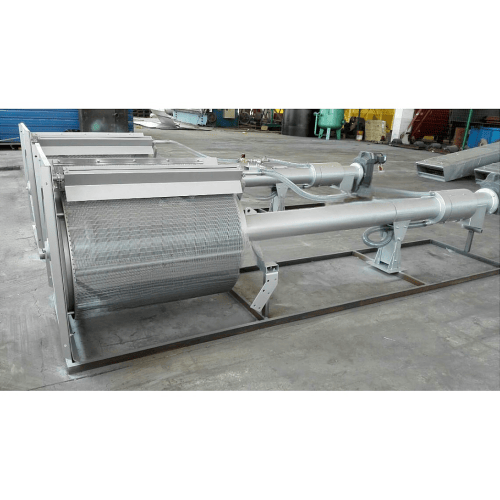

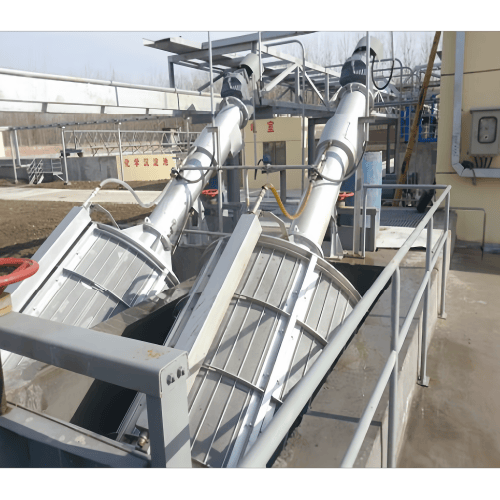

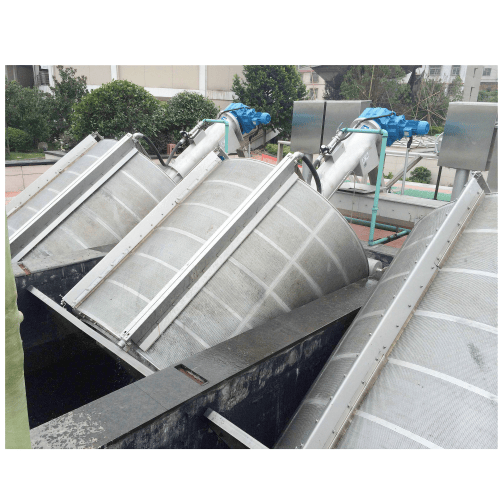

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-Z500 | — | — |
| Housing Material | SS304 | — | — |
| Flow Rate | Customizable | m3/h | — |
| Channel Width | 600 | mm | — |
| Equipment Width | 500 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | 500*600 | — | — |
| Screen Drum Speed | ≈8.1 | r/min | — |
| Screen Drum Slot Size | Customizable | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Backwash cleaning pipe | DN25 | — | — |
| Drive Motor | 0.55 | KW | — |
