SS304-800*1200-Externally Fed Rotary Drum Screen
Basic Information
Model
JX-LW-800-304
Unit
set
Category
Externally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
1650x1510x1700 mm
Package Weight
820 KG

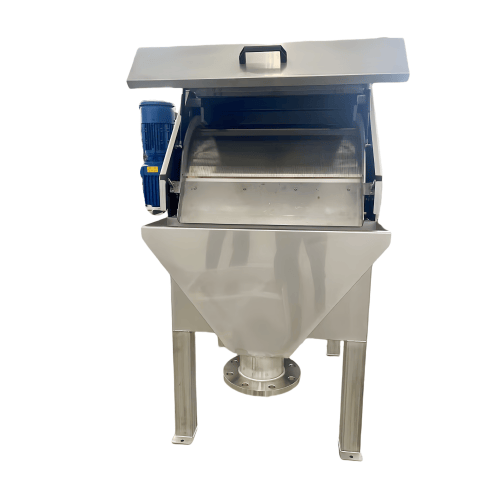

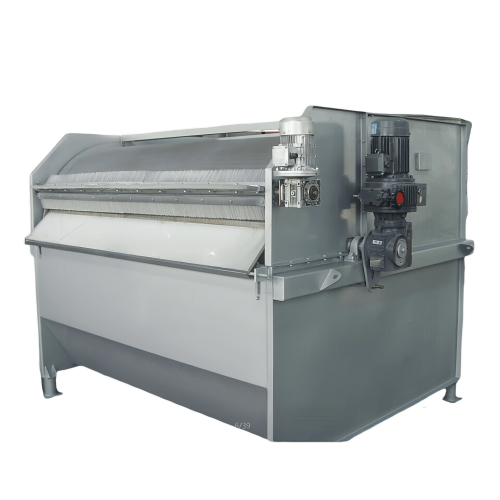

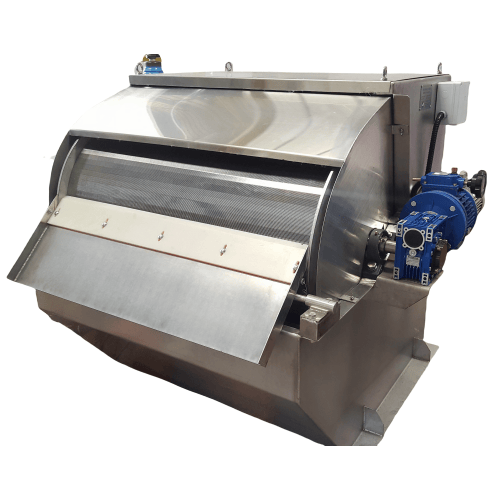

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-LW-800 | — | — |
| Housing Material | SS304 | — | — |
| Treatment capacity | Refer to the specification in the price list | m3/h | — |
| Cleaning water pressure | 0.3-0.6 | pma | — |
| Inlet Requirement | According to the raw water | — | — |
| Outlet requirement | According to the raw water | — | — |
| Total weight | ~760 | KG | — |
| Overall size | ~1560x1410x1600 | mm | — |
Drum screen
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Screen Size | Ф800×1200 | mm | — |
| Screen Precision | 6/Customizable | mm | — |
| Screen Material | SS304 | — | — |
Driving and control device
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Brand | Siemens | — | — |
| Power | 0.75 | KW | — |
| Bearing Brand | NSK | — | — |
| Low Voltage Components | Schneider | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Material Distributor | It is welded by seamless pipe, flange and steel plate. The function is to distribute the raw material evenly on the rotating screen. | — | — |
| Water Inlet | DN250 | — | — |
| Water Outlet | DN350 | — | — |
Price
$11400
per set
