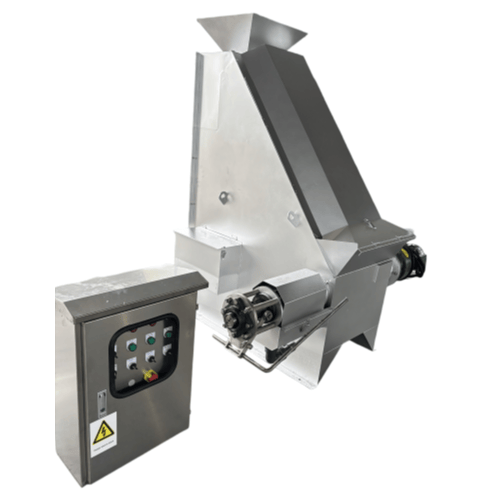

SS304-700-Sieve Bend Screen
Basic Information
Model
JX-KDS-Y700-SS304
Unit
set
Category
Sieve Bend Screen
Delivery Time
30 Days
Package Size
2000x1500x1700 mm
Package Weight
800 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Equipment Specification | JX-KDS-Y700 | — | — |
| Equipment Material | SS304 | — | — |
| Processing Capacity | ~15 | m³/h | — |
| Equipment Weight | ~750 | KG | — |
| External Dimensions | As per drawing | mm | — |
Sieve surface
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration accuracy | Refer to the specification in the price list | — | — |
| Material | SS304 | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Water Inlet | As per drawing | — | — |
| Flange connection | As per drawing | — | — |
| Spray Device | YES | — | — |
| Vibrating Motor | YES | KW | Vibration motor power：0.18kw、Pressing motor: 2.2kw、Cleaning motor: 0.25kw |
