SS304-6"-Basket Filter
Basic Information
Model
JX-BF-6（326）
Unit
set
Category
Basket Filter
Delivery Time
30 Days
Package Size
630x500x800 mm
Package Weight
110 KG

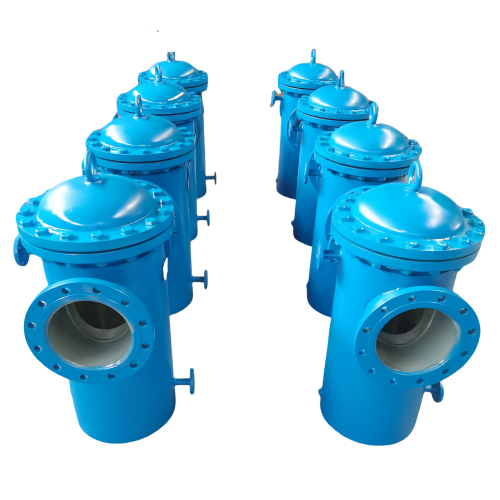

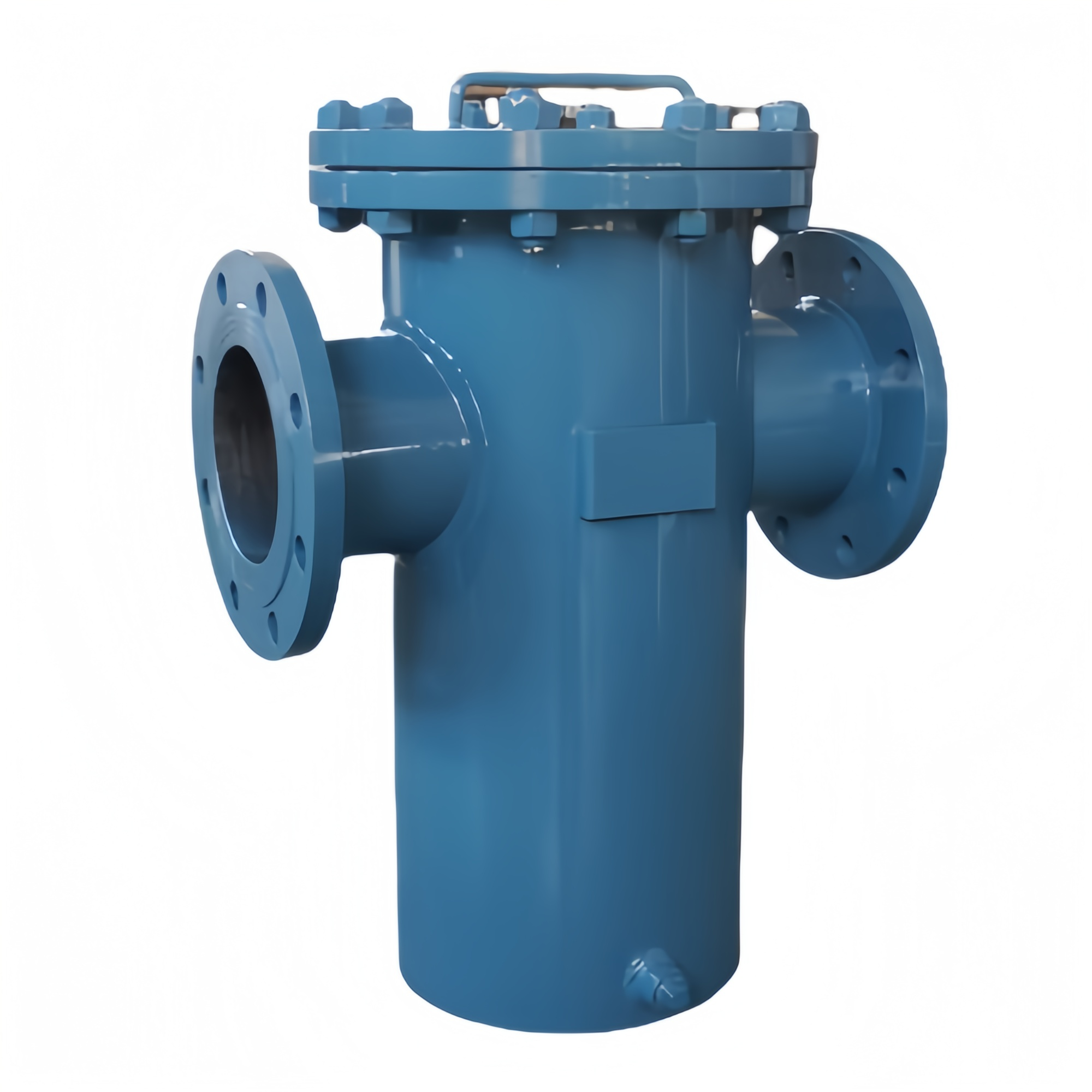

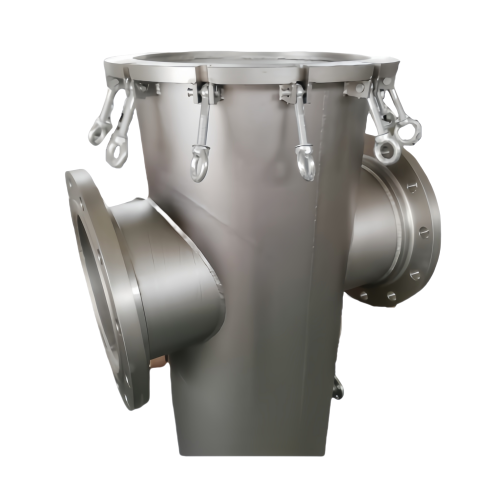

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-BF-6 | — | — |
| Processing Capacity | Refer to the specification in the price list | m3/h | — |
| Material Of Cylinder | SS304 | — | — |
| Working Pressure | 1.0 | Mpa | — |
| Hydraulic Loss | <0.01 | Mpa | In cleaning state |
| Flange Connection Standard | ANSI/DIN, SO/RF | — | — |
| Inlet/Outlet Pipe Size | 6“ | — | — |
| Bolts Material | SS304 | — | — |
| Overall Dimensions (L × W × H) | 520*500*670 | mm | — |
| Total Machine Weight | ~90 | kg | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Number Of Filter Elements | 1 | PCS | — |
| Material Of Filter Elements | SS304 | — | — |
| Filtration Accuracy | 1 | mm | — |
| Flow Direction | External Inlet Flow | — | — |
Auxiliary Systems
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Backwash System | Auto-cleaning of filter elements (Water/Air Backwash) | — | — |
| Drain Valve | NPT 1" | — | — |
| Pressure Gauge | Mechanical or Electronic | — | — |
| Cover Opening Method | Swing Arm Type / Clamp Type | — | — |
Control Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | None | — | — |
