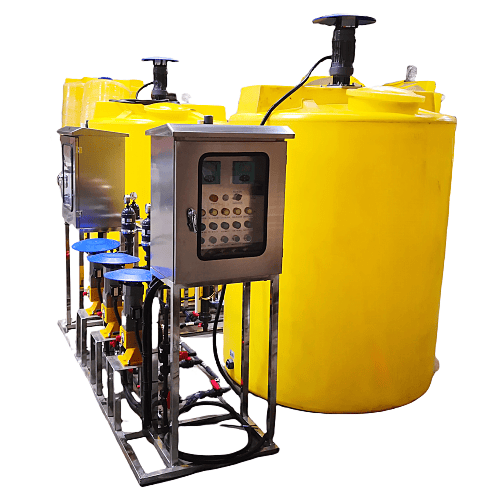

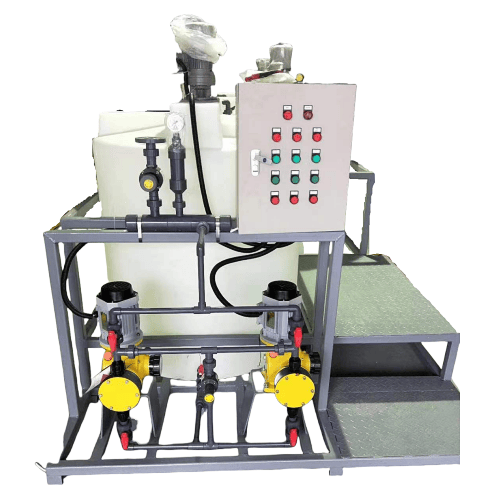

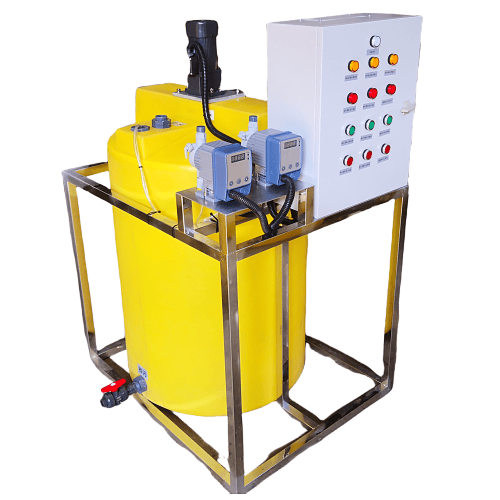

SS304-500-Semi-Automatic Dosing Device
Basic Information
Model
JX-JYH-500-PE
Unit
set
Category
Dosing system
Delivery Time
30 Days
Package Size
1200x1200x1600 mm
Package Weight
300 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-JYH-500 | — | — |
| Throwing Powder | 1-5 | KG/H | — |
| Configuration Capabilities | 500 | L/H | — |
| Main Material | PE | — | — |
| Installation Dimensions | 1000*1000*1450 | mm | — |
composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Tank | PE | — | — |
| Speculation | PE | — | — |
| System Pipe Accessories | DN15/DN25 | — | — |
| Mixer (including shaft and impeller) | PE | — | — |
| Liquid Level Controller | PE | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | semi-automatic | — | — |
| Electric Control Box | Carbon steel spray | — | — |
| power Supply | 380V/50HZ, customized | — | — |
| Mixing Power | 0.37 | KW | — |
| Motor Power | 0.18 | KW | — |
| Reducer | Congli, Hengxing or other well-known brands | — | — |
