SS304-350(2)-Horizontal Decanter Centrifuge
Basic Information
Model
JX-LWS-350(2)-304
Unit
set
Category
Horizontal Decanter Centrifuge
Delivery Time
30 Days
Package Size
3690x1200x1250 mm
Package Weight
2120 KG

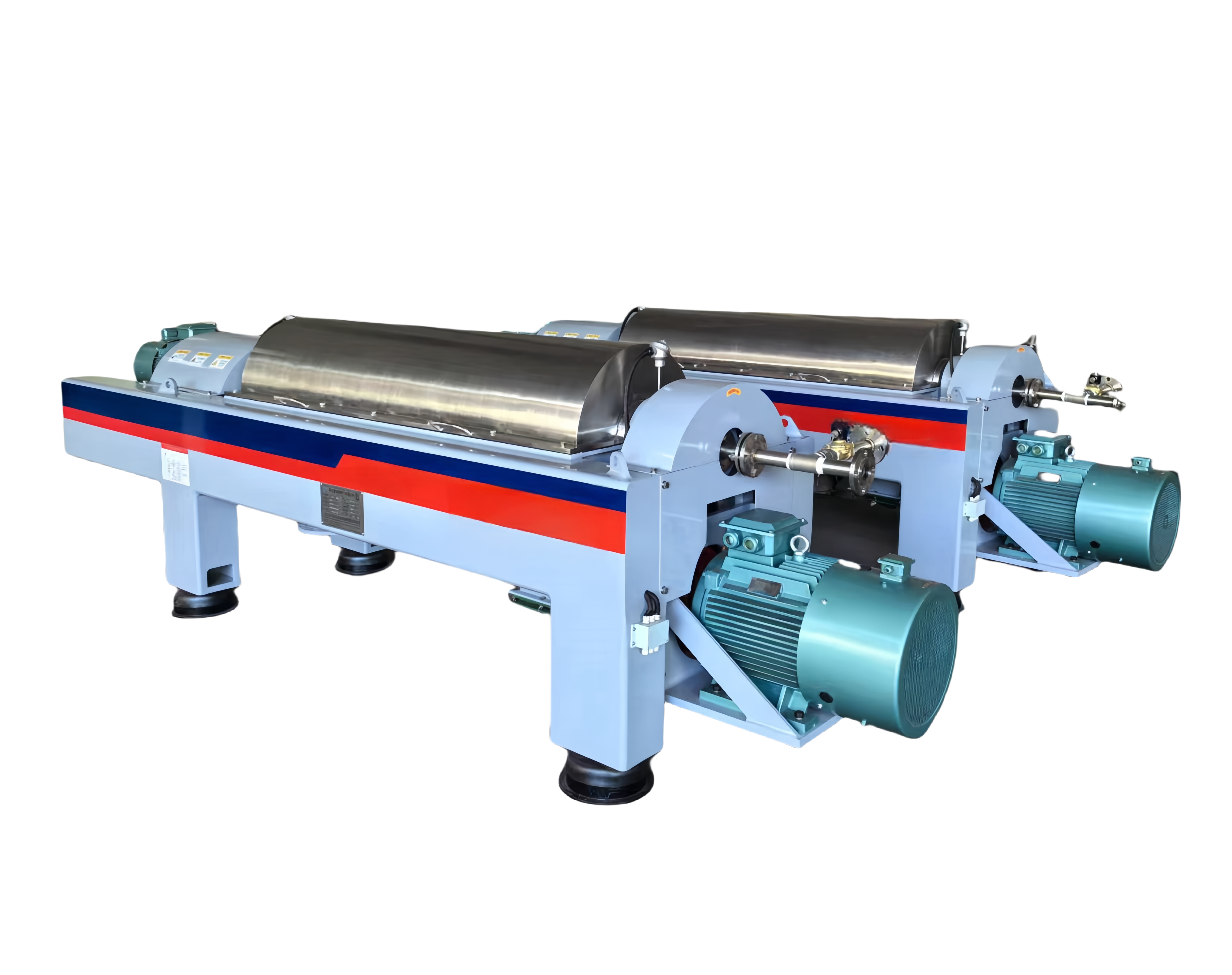

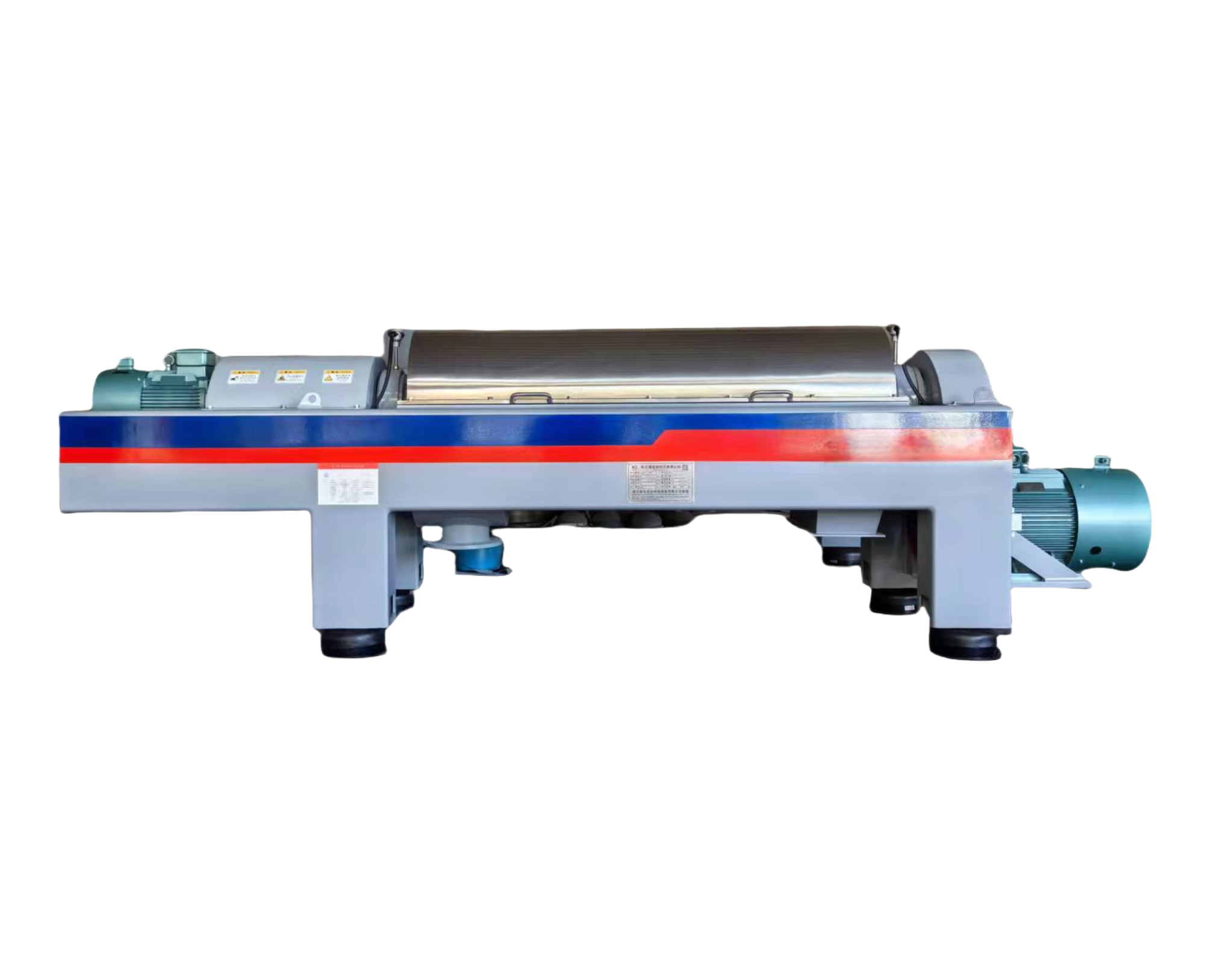

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-LWS-350 | — | — |
| Material | SS304 | — | — |
| Feeding Method | Small-end feed | — | — |
| Feed Concentration | As per customer requirements | % | — |
| Processing Capacity | 5-8 | m3/h | — |
| Moisture Content Of Solids After Treatment | ≤80% | % | — |
| Solid Removal Efficiency | ≥98 | % | — |
| Differential Speed Of Screw Conveyor | 1-30 variable speed control | r/min | — |
| Overall Dimensions (L × W × H) | 3592*1100*1103 | mm | — |
| Total Weight | 2000 | KG | — |
Drum Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Inner Diameter | 350 | mm | — |
| Drum Working Length | 1300 | mm | — |
| Maximum Drum Speed | 3800 | r/min | — |
| Separation Factor | 2100 | — | — |
| Length-to-diameter Ratio (L/d) | 3.7 | — | — |
| Rotation Direction Of Drum And Pulley (viewed from small end) | Clockwise viewed from the small end of the drum | — | — |
| Differential Mechanism Type | Planetary gear | — | — |
| Dynamic Balance Accuracy | G2.5 | — | — |
Screw Conveyor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw blade Characteristics | Single-head/Double-head, Left-hand/Right-hand | — | — |
| Dynamic Balance Accuracy | G2.5 | — | — |
Motor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Protection Grade | IP55 | — | — |
| Motor Insulation Class | F | — | — |
| Power Requirements | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Main Motor Rated Power | 15 | KW | — |
| Auxiliary Motor Power | 7.5 | KW | — |
Others
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Load Vibration Severity | ≤7.1 | mm/s | — |
| Differential Torque | 3800 | N | — |
| Lubrication Method | Grease lubrication | — | — |
| Working Mode | Capable of 24h/day continuous or intermittent operation | — | — |
| Operating Noise (measured 1m from the dewatering unit) | ≤90 | dB(A) | — |
