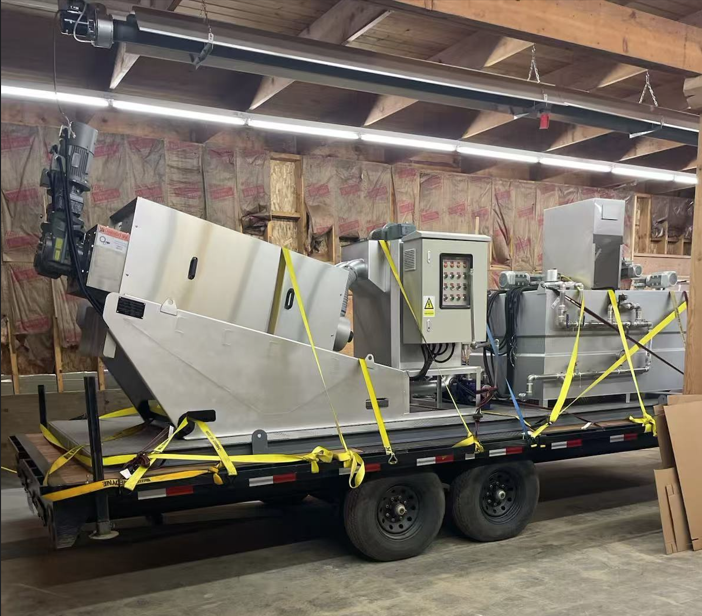

SS304-302+500-Sludge Dewatering Press All In One Machine
Basic Information
Model
JX-YTH-302(500)-SS304
Unit
set
Category
Hydrocyclone-Integrated Machine
Delivery Time
30 Days
Package Size
5250x2100x2150 mm
Package Weight
3600 KG
Technical Specifications
composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-YTH-302 | — | — |
| Material | SS304 | — | — |
| Screw Press Machine | JX-DL-302 | — | 1PC |
| Dosing Device | JX-JYH-500 | — | 1PC |
| Sludge Transfer Pump | JX-G35 | — | 2PCS |
| Dosing Pump | JX-G35 | — | 2PCS |
| Feeding Capacity | 100-140 | kg/h | — |
Screw press machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Sewage Inlet | DN50 | — | — |
| Overflow | DN100 | — | — |
| Dosing Port | DN20 | — | — |
| Backwash Water Inlet | DN20 | — | — |
| Vent | DN50 | — | — |
| Filtrate Outlet | DN150 | — | — |
| Motor Power | 0.75 | KW | — |
| Mixing Power | 0.55 | KW | — |
| Voltage | 380V/Customizable | — | — |
| Speed | 2.16-5.4 | r/min | — |
| Mixing Speed | 25 | r/min | — |
Dosing device
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Water Inlet | DN25 | — | — |
| Water Outlet | DN25 | — | — |
| Overflow | DN32 | — | — |
| Drain Port | DN25 | — | — |
| Mixing Motor | 0.37*2 | KW | — |
| Conveyor Motor | 0.18 | KW | — |
| Mixing Speed | 140 | r/min | — |
| Conveying Speed | 6.4-32.2 | r/min | — |
Delivery pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flow | 8 | m3/h | — |
| Material | SS304 | — | — |
| Inlet | DN65 | — | — |
| Outlet | DN50 | — | — |
| Power | 4.0KW | — | — |
Dosing pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flow | 8 | m3/h | — |
| Material | SS304 | — | — |
| Inlet | DN65 | — | — |
| Outlet | DN50 | — | — |
| Power | 4.0KW | — | — |
