SS304-2#-Single Bag Filter Housing
Basic Information
Model
JX-SBFH-2
Unit
set
Category
Single Bag Filter Housing
Delivery Time
30 Days
Package Size
500x350x1300 mm
Package Weight
45 KG

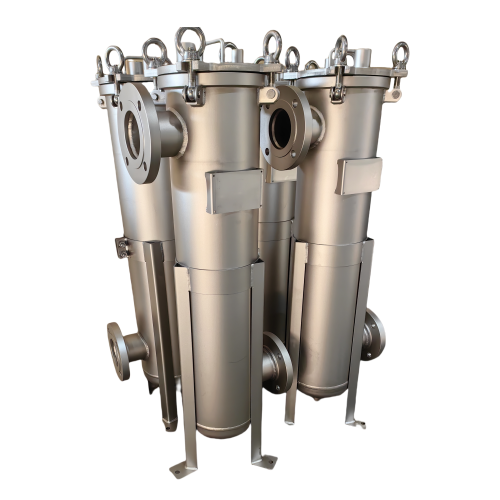

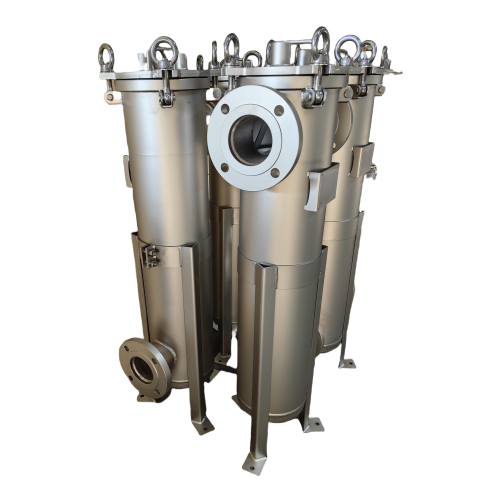

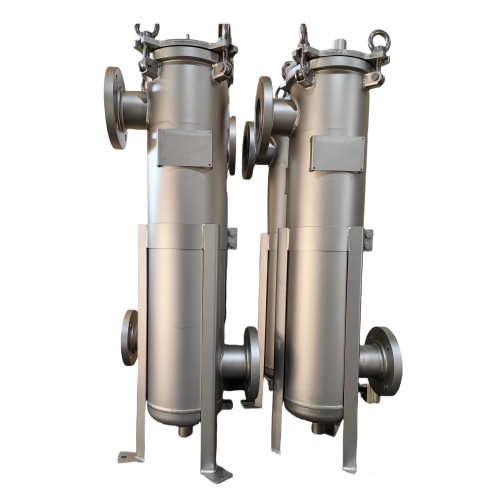

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SBFH-2 | — | — |
| Filtration Rating | Refer to the specification in the price list | — | — |
| Max. Working Pressure | 1.0 | — | — |
| Operating Temperature | 120 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Material | SS304 | — | — |
| Filter Bag Material | PP\PET\PA\PTFE | — | — |
| Sealing Material | EPDM, Silicone, Fluorocarbon (Viton), Food-grade Available | — | — |
| Filter Bag Size | 180*810 | — | — |
| Connection Type | Customizable | — | — |
| Lid Opening Method | Customizable | — | — |
| Surface Treatment | Customizable | — | — |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | ≤0.1 | MPa | — |
| Filtration Efficiency | ≥99.9% | — | — |
| Cleaning Method | Manual Removal | — | — |
