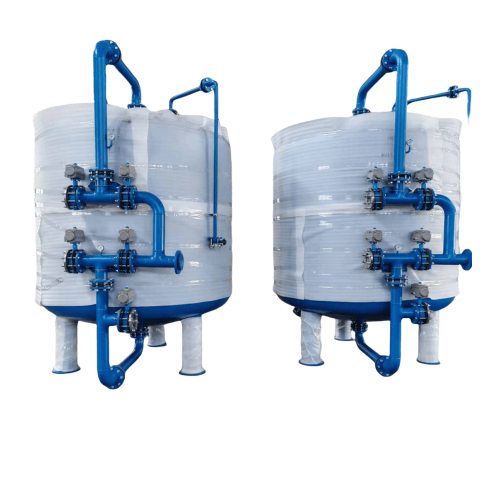

SS304-1600-Sand Filter(Electric Valve)
Basic Information
Model
JX-DZ-1600-SS304（Electric Valve）
Unit
set
Category
Sand Filter
Delivery Time
30 Days
Package Size
1700x1600x2850 mm
Package Weight
980 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DZ-1600 | — | — |
| Total Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS304 | — | — |
| Working pressure | 0.2-0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | 70 | ℃ | — |
| Dimensions (LWH) | ~1600x1500x2750 | mm | — |
| Total Weight | ~890 | kg | — |
Tank Body
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Upper Distributor Material | SS304 | — | — |
| Lower Distributor Material | SS304 | — | — |
| Manhole Size | DN250 | — | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe | See drawing | — | — |
| Outlet Pipe | See drawing | — | — |
| Vent Pipe | See drawing | — | — |
| Backwash Drain Pipe | See drawing | — | — |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | Pressure Difference/ PLC/NO | — | — |
| Valve | Electric Valve | — | — |
