SS304-1500-Vibrating Screen Machine-In-line Screen
Basic Information
Model
JX-RVS-LS1500-SS304
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
1600x1600x1200 mm
Package Weight
678 KG

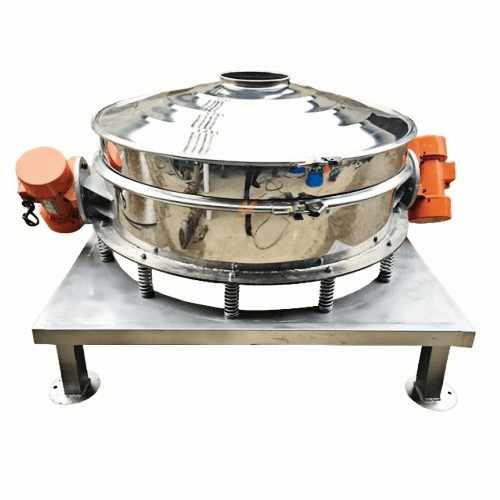

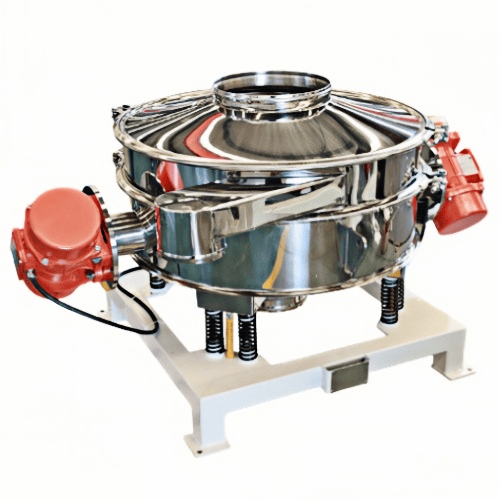

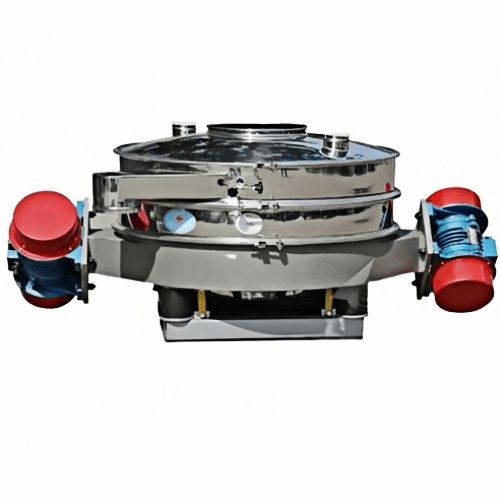

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-LS1500 | — | — |
| Material | SS304 | — | — |
| Production Capacity | Refer to the specification in the price list | — | — |
| Screening Material | Customizable | — | — |
| Dynamic Load | / | N | — |
| Static Load | / | N | — |
| Excitation Force | 3 | KN | — |
| Double Amplitude | 3-8mm | mm | — |
| Dimensions (L*W*H) | See drawing | mm | — |
| Total Weight | ~520 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф1460 | — | — |
| Number of Screen Layers | 1 | — | — |
| Screening Area | 1.67 | m2 | — |
| Screen Mesh Specification | Customized by Customer | — | — |
| Screen Mesh Structure | woven screen | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | / | — | — |
| Power | 0.75*2 | KW | — |
| Speed | 1500 | rpm | — |
| Motor | 380V 50HZ | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | SS304 | mm | 2.0mm |
| Upper Frame | SS304 | mm | 2.0mm |
| Lower Frame | SS304 | mm | 2.5mm |
| L-shaped Mesh Frame | SS304/201 | — | — |
| Bearing | ＜95℃ | — | — |
| Vibration Body | Carbon steel Q235 | — | 80*16 flange |
| Base | Carbon steel Q235 | — | 80*16 flange |
| Skirt | / | — | — |
| Spring | / | — | — |
| Sealing Ring | / | — | — |
| PU Ring (per layer) | / | — | — |
| Anti-blocking Mesh Bouncing Balls (per layer) | / | — | — |
Price
$34075
per set
