SS304-1200+D4800-Bar Screen
Basic Information
Model
JX-GF-J1200-304
Unit
set
Category
Stepped Grille
Delivery Time
30 Days
Package Size
2600x1300x6900 mm
Package Weight
2600 KG

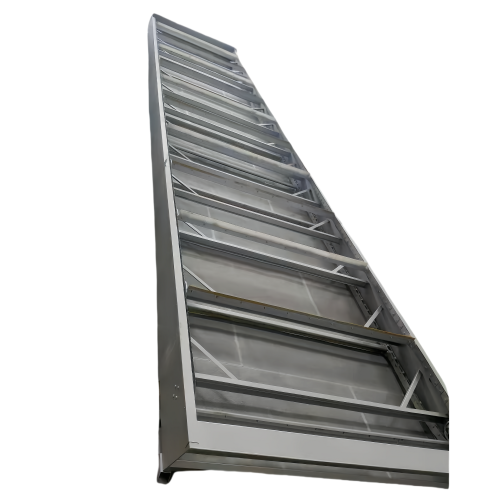

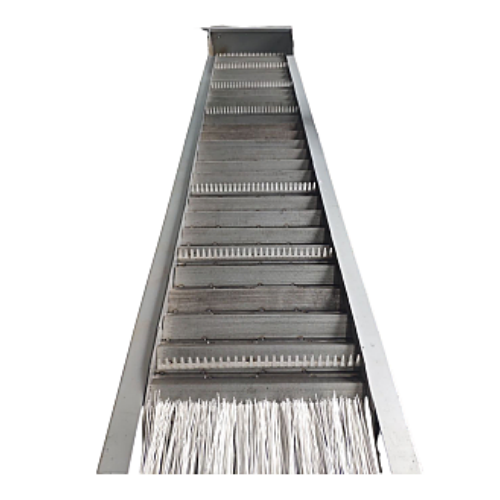

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-J1200 | — | — |
| Material | SS304 | — | — |
| Overall Dimensions (L*W*H） | See drawing | mm | — |
| Total Weight | ~2500 | kg | — |
Channel Equipment
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Channel Width | 1400 | mm | — |
| Channel Depth | 4800 | mm | — |
| Clearance | 1/Customizable | mm | — |
| Machine Width | 1200 | mm | — |
| Installation Angle | 75° | — | — |
| Discharge height | 1000 | mm | — |
| Rake moving speed | 2 | m/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Brand | Siemens/Beide | — | — |
| Motor Power | 1.5 | KW | — |
| Motor Protection Level | IP55/IP65 | — | — |
| Motor Insulation Level | F | — | — |
