SS304-1-Bag Filter Housing
Basic Information
Model
JX-SBFH-1-SS304
Unit
set
Category
Single Bag Filter Housing
Delivery Time
30 Days
Package Size
1100x400x350 mm
Package Weight
50 KG

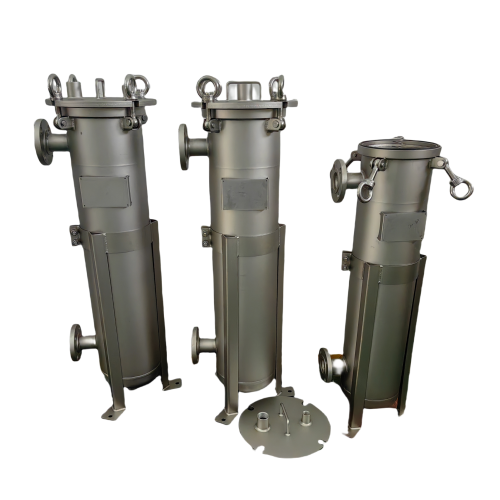

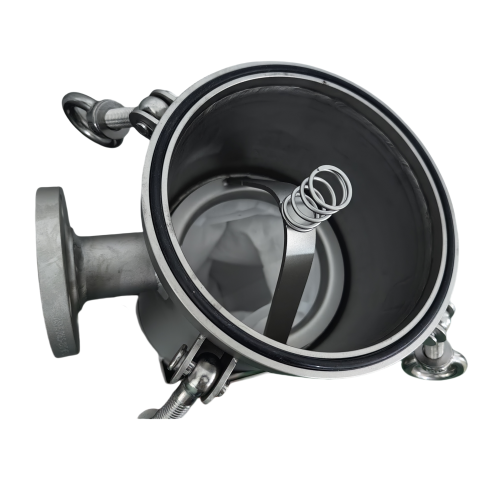

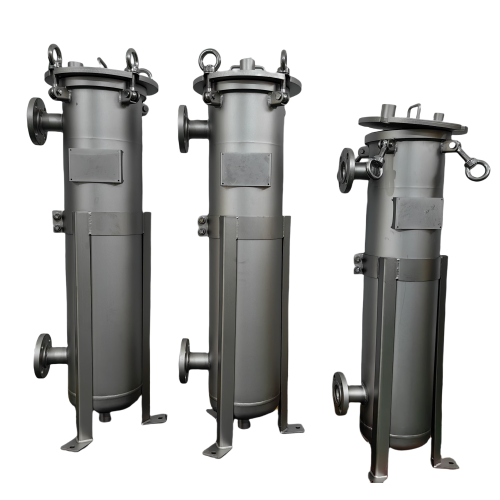

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SBFH-1 | — | B4BB2 |
| Filtration Rating | 0.5 | — | — |
| Max. Working Pressure | 1.2 | — | — |
| Operating Temperature | 90 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Material | SS304 | / | — |
| Filter Bag Material | SS304 | / | — |
| Sealing Material | SS304 | / | — |
| Filter Bag Size | 180*810 | mm | — |
| Connection Type | Customizable | / | — |
| Lid Opening Method | Customizable | Arm | — |
| Surface Treatment | Polishing | / | — |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | ≤0.1 MPa (Initial) | MPa | — |
| Filtration Efficiency | ≥99.9% (Nominal Rating) | — | — |
| Cleaning Method | Manual Removal | — | — |
