Crusher + Model 350 Press
Basic Information
Model
JX-ZD-J350
Unit
set
Category
Biomass Crushing and Pressing Integrated Machine
Delivery Time
30 Days
Package Size
3470x120x1380 mm
Package Weight
2600 KG

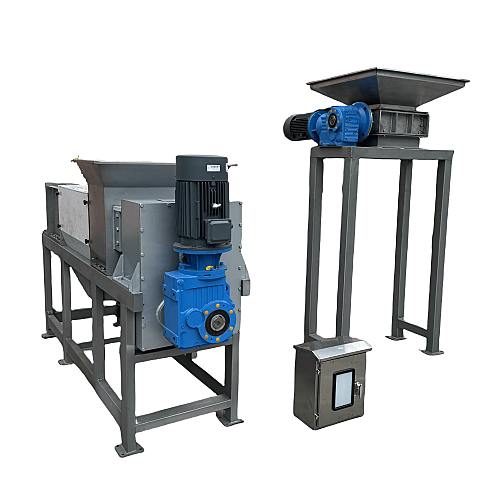

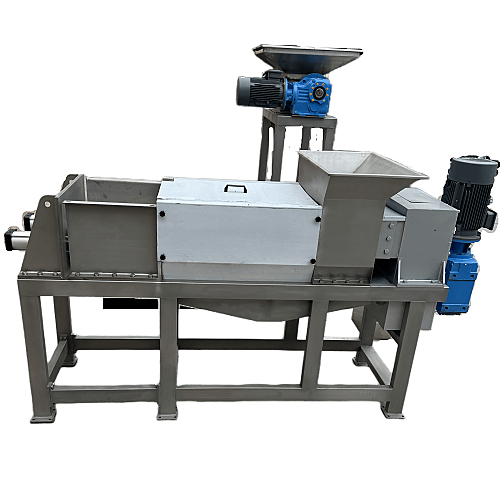

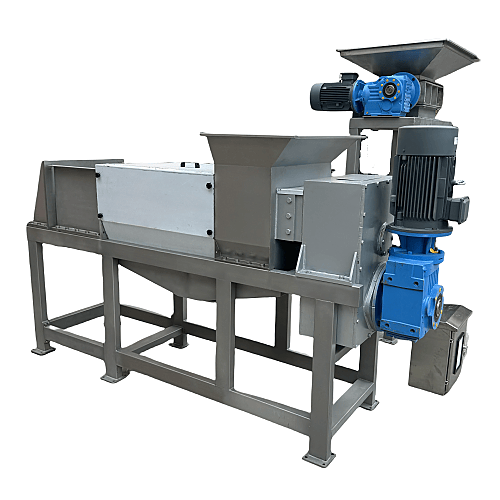

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 2-3 | t/h | — |
| Model | JX-ZD-J350 | — | — |
| Material | SS304 | — | — |
| Installation Dimensions | 3368*1080*2275 | mm | — |
Feeding System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity Feeding | — | — |
Crushing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Crusher Rotor Diameter | 160 | mm | — |
| Crusher Speed | 22-25 | rpm/min | — |
| Crusher Housing Material | SS304 | — | — |
Pressing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS304 | — | — |
| Screw Diameter | 350 | mm | — |
| Screw Rotation Speed | 12-15 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Media | SS304 | — | — |
| Filtration Method | Wedge Wire | — | — |
| Filtration Precision | Customizable | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | Hydraulic/Manual/Pneumatic | — | — |
| Collection Trough | SS304 | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Juicer Power | 4 | KW | — |
| Crusher Power | 7.5 | KW | — |
| Motor Brand | Siemens/Beide | — | — |
| Power Supply | 380V/50HZ | — | — |
Additional Components
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | Electric Control Cabinet/PLC/Manual | — | — |
| Cleaning System | Internal Cleaning System | — | — |
