Carbon Steel-42-2-Shallow Sand Filter
Basic Information
Model
JX-SL42-2
Unit
set
Category
Shallow Sand Filter
Delivery Time
30 Days
Package Size
2300x1070x2450 mm
Package Weight
1300 KG

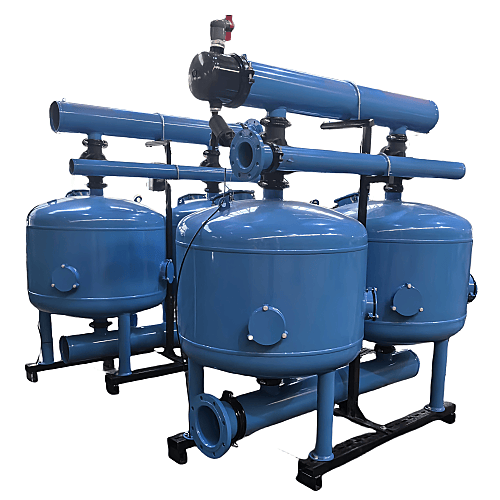

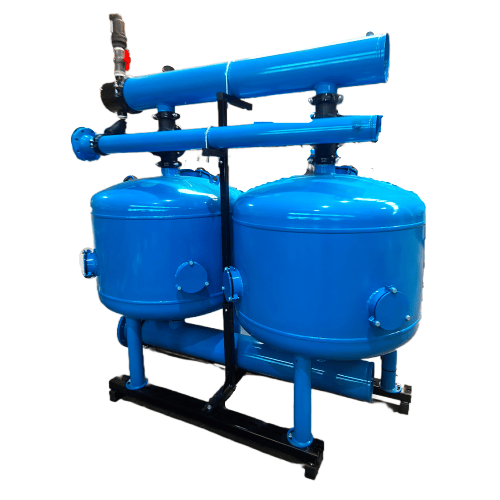

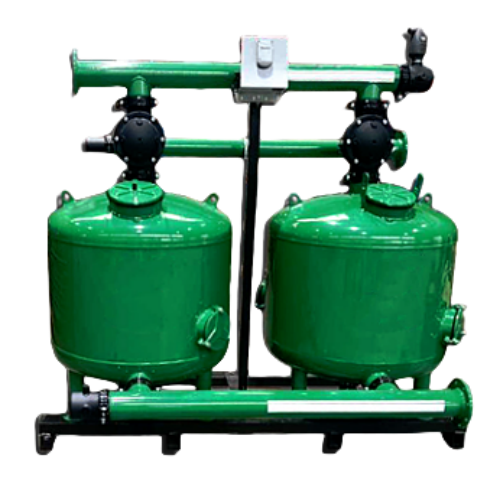

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SL42-3 | — | — |
| Total Capacity | ~120 | m3/h | — |
| Material | Carbon steel | — | — |
| Working Pressure | 0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Design Temperature | < 70°C | ℃ | — |
| Overall Dimensions (LWH) | 2590*1170*2450 | mm | — |
| Total Weight | ~950 | kg | — |
Single Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Single Tank Capacity | 40 | m3/h | — |
| Wall Thickness | 6 | mm | — |
| Filter Tank Diameter | 1066 | mm | — |
| Single Net Weight | ~350 | kg | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet/Outlet Pipes | DN200 | — | — |
| Drain Pipes | DN100 | — | — |
| Flange Connection Standard | ANSI/DIN、SO/RF | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | Full-automatic | — | — |
Price
$2130
per set
