Carbon Steel-24-3-Mutimedia Filter
Basic Information
Model
JX-SL24-3
Unit
set
Category
Shallow Sand Filter
Delivery Time
30 Days
Package Size
2520x951x1800 mm
Package Weight
849 KG

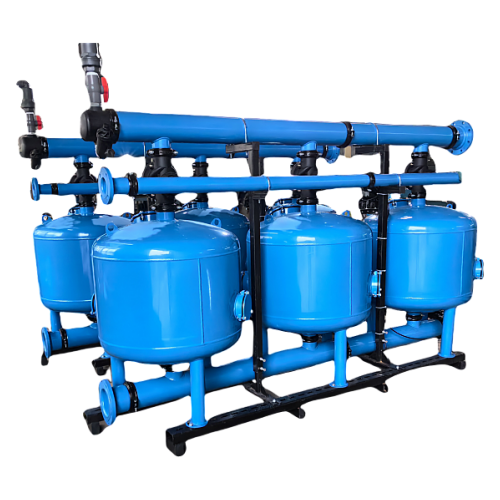

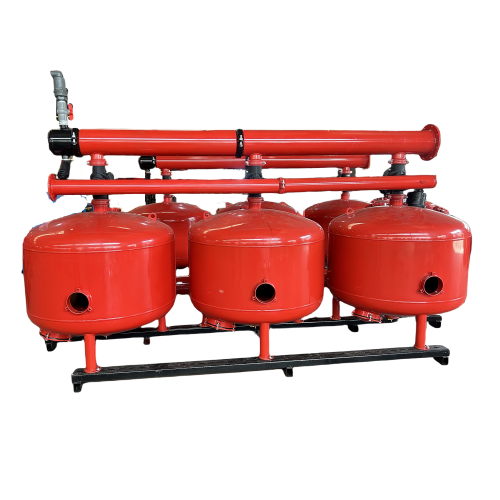

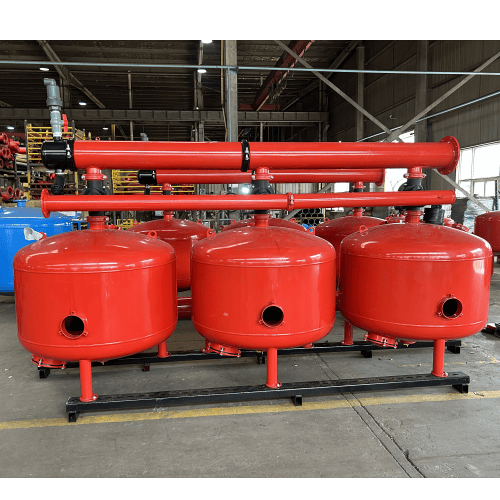

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SL24-3 | — | — |
| Total Capacity | ~3-15 | m3/h | — |
| Material | Carbon steel | — | — |
| Working Pressure | 0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Design Temperature | 80 | ℃ | — |
| Overall Dimensions (LWH) | 2520*950*1795 | mm | — |
| Total Weight | / | kg | — |
Single Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Single Tank Capacity | 15 | m3/h | — |
| Wall Thickness | 5 | mm | — |
| Filter Tank Diameter | 608 | mm | — |
| Single Net Weight | / | kg | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet/Outlet Pipes | DN100 | — | — |
| Drain Pipes | DN50 | — | — |
| Flange Connection Standard | ANSI/DIN、SO/RF | — | See drawing |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | Customizable | — | — |
Price
$2000
per set
