SS316-Z800-Channel Drum Screens
Basic Information
Model
JX-GF-Z800-316
Unit
set
Category
Channel Drum Screens
Delivery Time
30 Days
Package Size
3500x900x1050 mm
Package Weight
600 KG

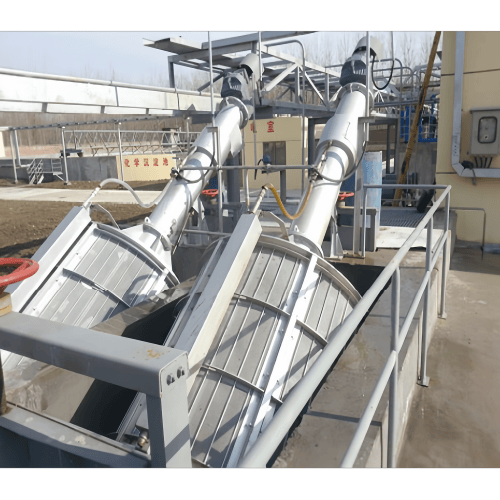

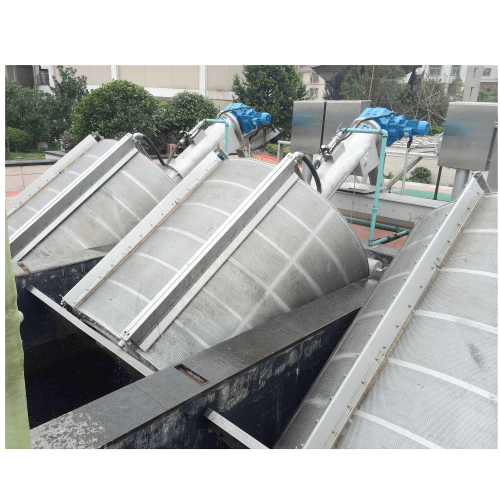

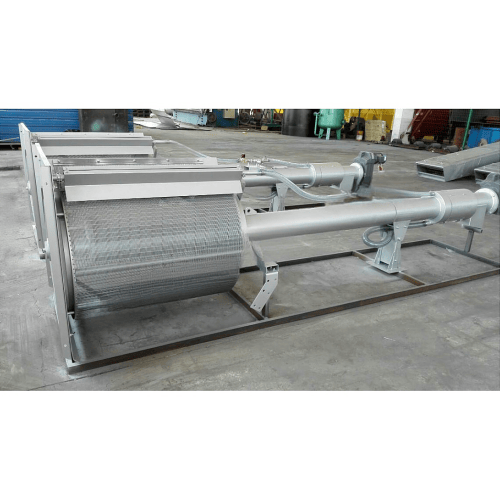

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-Z800 | — | — |
| Housing Material | SS316 | — | — |
| Flow Rate | Customizable | m3/h | — |
| Channel Width | Customizable | mm | — |
| Equipment Width | 800 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | 800 | — | — |
| Screen Drum Speed | ≈8 | r/min | — |
| Screen Drum Slot Size | Customizable | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Backwash cleaning pipe | DN25 | — | — |
| Drive Motor | 0.75 | KW | — |
Price
$11570
per set
