SS316-Z2000-Channel Drum Screens
Basic Information
Model
JXN-Z2000-316
Unit
set
Category
Channel Microfiltration Machine
Delivery Time
30 Days
Package Size
3900x2380x2450 mm
Package Weight
1400 KG

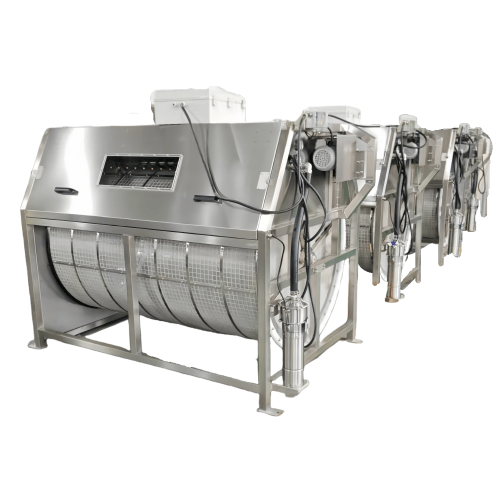

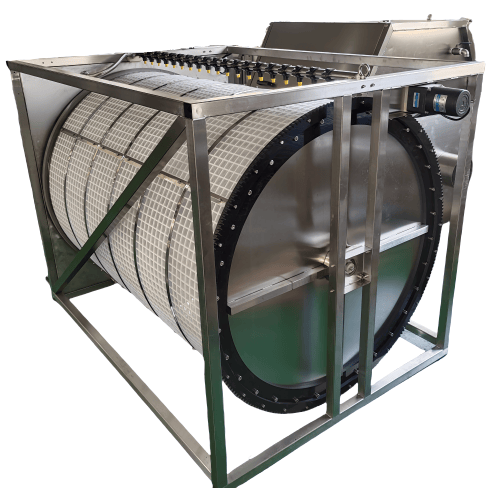

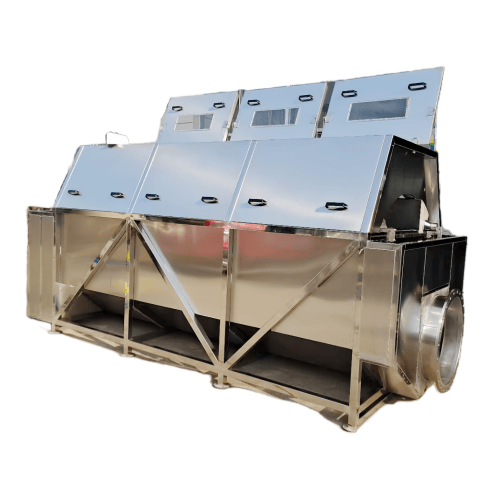

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-Z2000 | — | — |
| Housing Material | SS316 | — | — |
| Flow Rate | Refer to the specification in the price list | m3/h | — |
| Channel Width | 2280 | mm | — |
| Equipment Width | 2000 | mm | woven mesh |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | Ф2000×3000mm | — | — |
| Screen Drum Speed | 8-10 | r/min | — |
| Screen Drum Slot Size | Customized | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Drive Motor | 2.2 | KW | — |
Price
$24765
per set
