SS316-Modular Self-cleaning Filter
Basic Information
Model
JX-FHL-1
Unit
set
Category
Tubular Filter
Delivery Time
30 Days
Package Size
850x850400x1400 mm
Package Weight
50 KG

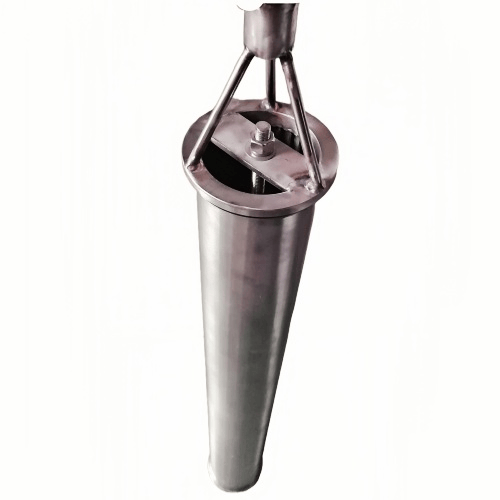

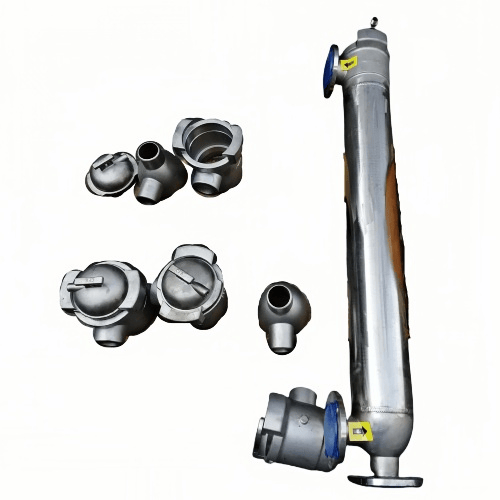

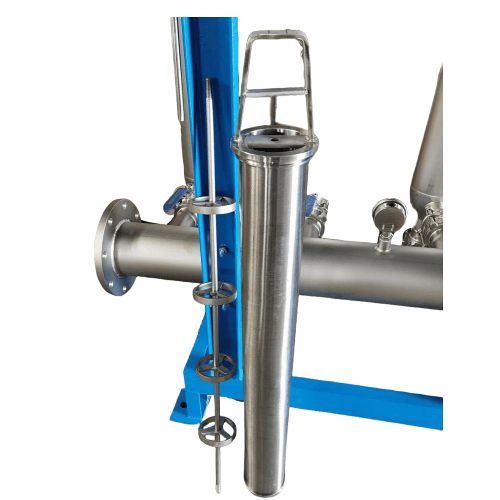

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-FHL-1 | — | — |
| Processing Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS316 | — | — |
| Hydraulic Loss | <0.01 | Mpa | — |
| Pressure Test | 1.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | 90 | ℃ | — |
| Dimensions (LWH) | 750*750*1300 | mm | — |
| Total Weight | ~42 | kg | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Material | SS316 | — | — |
| Filtration Accuracy | Refer to the specification in the price list | um | — |
| Screen Quantity | 1 | pcs | — |
Control Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rated Power | 0.5 | KW | Total power of the electrical control cabinet |
| Rated Voltage | Customized per buyer’s requirements | V | — |
| Control System | Siemens PLC control system with 7-inch touch screen | — | — |
| Control Mode | Pneumatic/Electric | — | — |
| Control Method | Pneumatic/Electric | — | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | See drawing | — | — |
| Outlet | See drawing | — | — |
| Drain Port | See drawing | — | — |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Bolt Material | Stainless Steel, A2-70 | — | — |
| Solenoid Valve | AIRTAC or equivalent | — | — |
| Ball Valve | Shanghai Zhaosen brand or equivalent | — | — |
| Differential Pressure Transmitter | Shanghai Zhaosen brand or equivalent | — | — |
Price
$4450
per set
