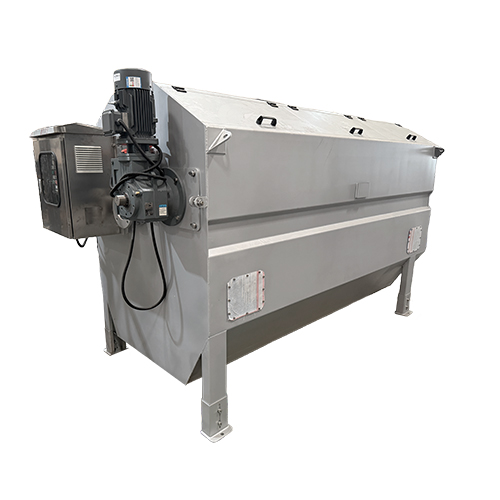

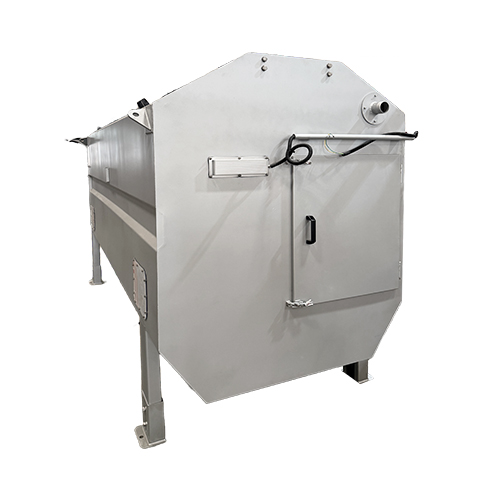

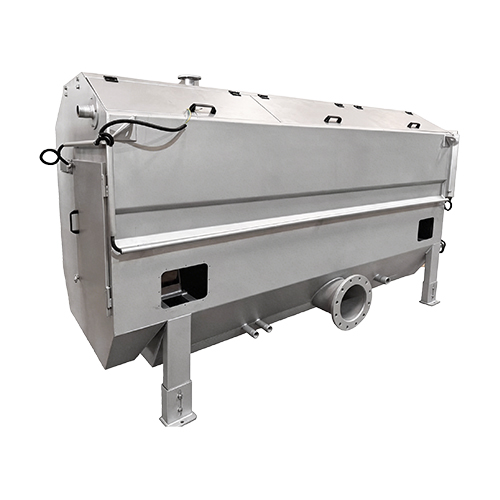

SS316-800*4000-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-800
Unit
set
Category
800-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
5300x1300x1650 mm
Package Weight
2850 KG
Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotary drum screen | Ф800*4000 | mm | — |
| Filtering area | 10.05 | m2 | — |
| Inlet | As per customer drawing | — | — |
| Outlet | As per customer drawing | — | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| REV | 6 | r/min | — |
| Slot size | Refer to the specification in the price list | mm | — |
| Backwash cleaning pipe | As per customer drawing | — | — |
| Slag discharge way | hopper | — | — |
| Water spray pressure | 0.6 | MPa | — |
| Power | 1.1 | kw | — |
Price
$15792
per set
