SS316-500*2500-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-500*2500-316
Unit
set
Category
500-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
3800x900x1550 mm
Package Weight
890 KG

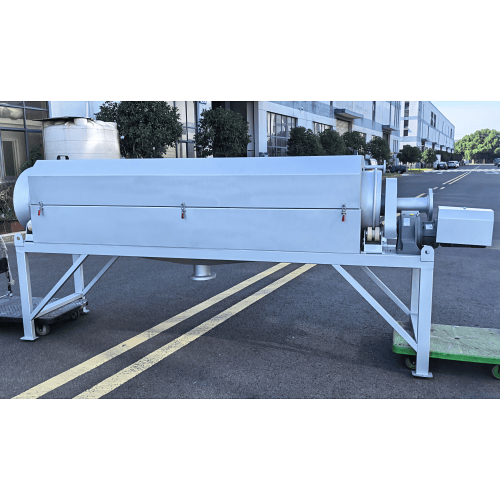

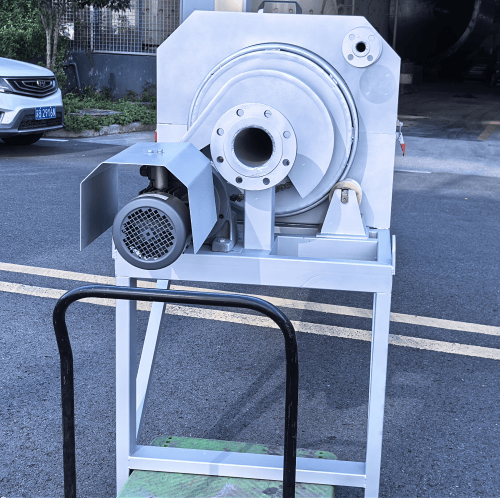

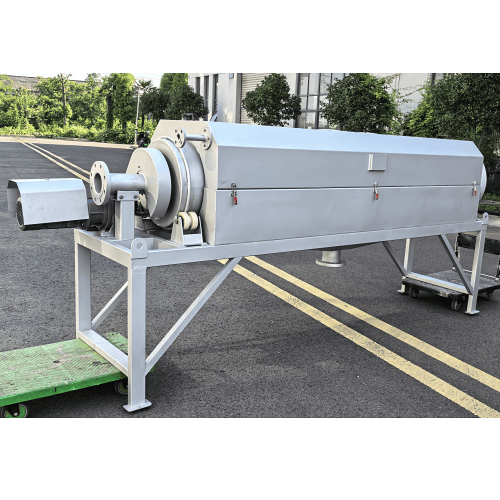

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-500 | mm | — |
| Size | Ф500*2500 | mm | — |
| Filtering area | 3.93 | m2 | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| Main Material | SS316 | — | — |
| Equipment Weight | 790 | KG | — |
| Installation Size | 3700*800*1460 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Wedge, | — | Perforated, Wedge, Woven, Sintered |
| Filter Precision | Customizable | mm | — |
| Filter Material | SS316 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Automatic/Manual | — | — |
| Power | 0.75 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | 6 | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 3" | — | As per customer drawing |
| Outlet | 4" | — | As per customer drawing |
| Backwash cleaning pipe | 1" | — | — |
Price
$10790
per set
