SS316-410-Disc Centrifuge
Basic Information
Model
JX-DC-410-SS316
Unit
set
Category
Disc Centrifuge
Delivery Time
30 Days
Package Size
2130x1580x2000 mm
Package Weight
1430 KG

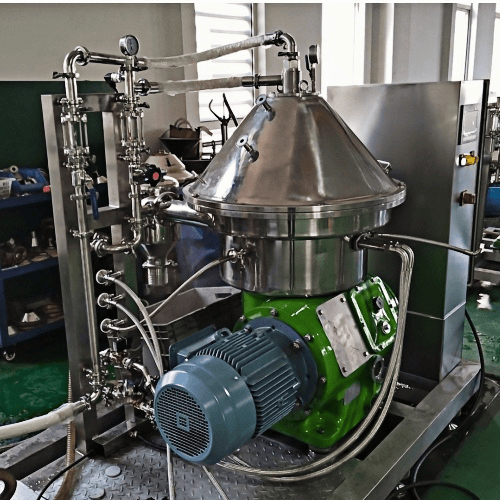

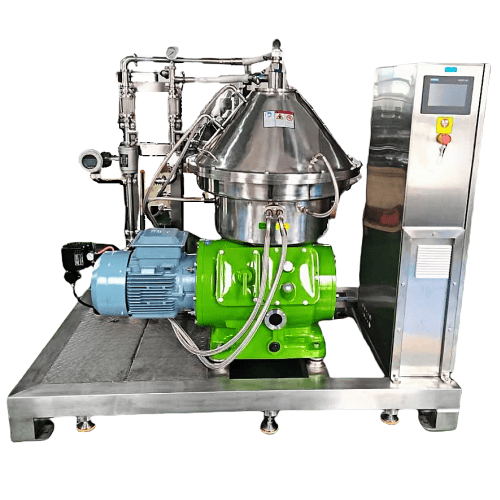

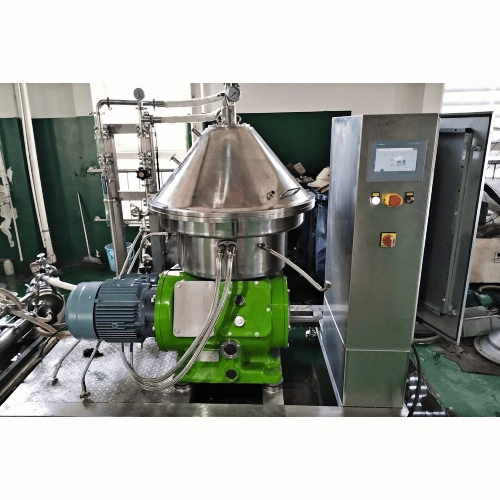

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DC-410 | — | — |
| Materialof Disc | SS316 | — | — |
| Feeding Capacity | 2-3 | m3/h | — |
| Equipment size | 1200*1000*1320 | mm | — |
| Equipment weight | ~990 | KG | — |
Drum
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Material | SS2205 | — | — |
| Drum Diameter | Φ410 | mm | — |
| Maximum Speed | 5900 | rpm | — |
| G-Force | 10400 | g | — |
| Disc Material | SS316 | — | 102 PCS |
| Disc Seat Material | SS316 | — | — |
| Chamber Volume | 4.2 | — | — |
| Inlet And Outlet Pipe Material | SS316 | — | — |
| Drive system | Belt Drive | — | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 15 | KW | — |
| Maximum Speed | 1460 | rpm | — |
| Motor Brand | ABB | — | — |
| Power Supply | 380V, 50hz or as per customer’s request | — | — |
Control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Touch Screen | Siemens | — | — |
| Low Voltage Parts | Schneider | — | — |
| PLC | Siemens | — | — |
