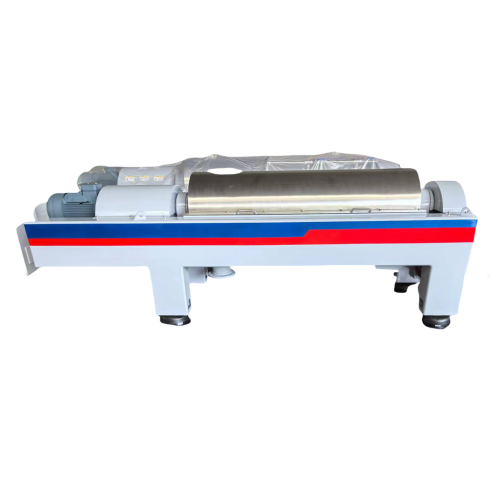

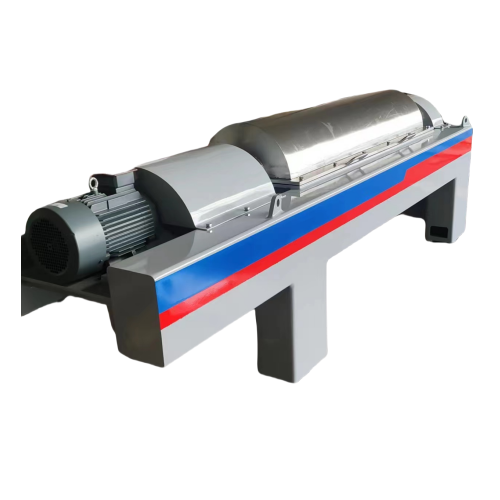

SS316-350+3P-Horizontal Decanter Centrifuge
Basic Information
Model
JX-LWS-350-3P-SS316
Unit
set
Category
Horizontal Decanter Centrifuge
Delivery Time
30 Days
Package Size
3700x930x1200 mm
Package Weight
2000 KG
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-LWS-350 | — | — |
| Material | SS316 | — | — |
| Feeding Method | Small-end feed | — | — |
| Feed Concentration | As per customer requirements | % | — |
| Processing Capacity | As per customer requirements | m3/h | — |
| Moisture Content Of Solids After Treatment | ≤80 | % | After separation, solid has moisture content |
| Solid Removal Efficiency | ≥98 | % | — |
| Differential Speed Of Screw Conveyor | variable speed control | r/min | — |
| Overall Dimensions (L × W × H) | ~3592*920*1103 | mm | — |
| Total Weight | ~2000 | KG | — |
Drum Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Inner Diameter | 350 | mm | — |
| Drum Working Length | 1500 | mm | — |
| Maximum Drum Speed | 3500 | r/min | — |
| Separation Factor | 2500 | — | — |
| Length-to-diameter Ratio (L/d) | 4.2 | — | — |
| Rotation Direction Of Drum And Pulley (viewed from small end) | Clockwise viewed from the small end of the drum | — | — |
| Differential Mechanism Type | Mechanical differential | — | — |
| Dynamic Balance Accuracy | G2.5 | — | — |
Screw Conveyor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw blade Characteristics | Single-head/Double-head, Left-hand/Right-hand | — | — |
| Dynamic Balance Accuracy | G2.5 | — | — |
Motor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Protection Grade | IP55 | — | — |
| Motor Insulation Class | F | — | — |
| Power Requirements | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Main Motor Rated Power | 15-4P | KW | — |
| Auxiliary Motor Power | 7.5-2P | KW | — |
Others
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Load Vibration Severity | mm/s | — | |
| Differential Torque | N | — | |
| Lubrication Method | — | — | |
| Working Mode | — | — | |
| Operating Noise (measured 1m from the dewatering unit) | dB(A) | — |
Price
$52195
per set
