SS316-30m²-Pre-coating Vacuum Drum Filter
Basic Information
Model
JX-GF30-SS316
Unit
set
Category
Pre-coating Vacuum Drum Filter
Delivery Time
30 Days
Package Size
5600x3300x2550 mm
Package Weight
9400 KG

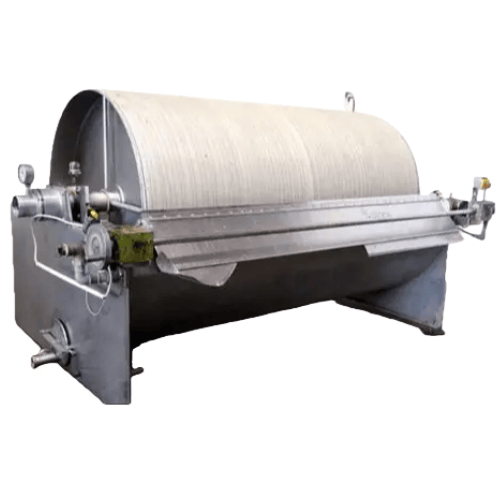

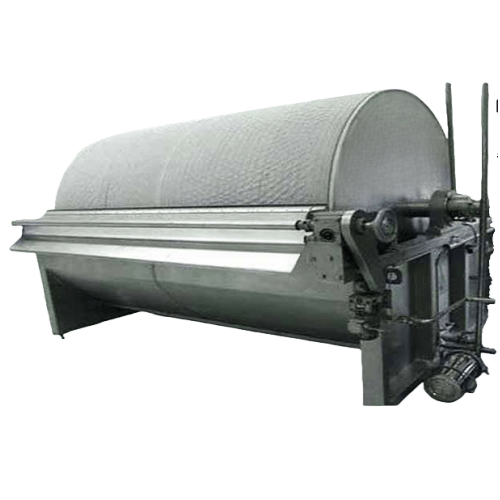

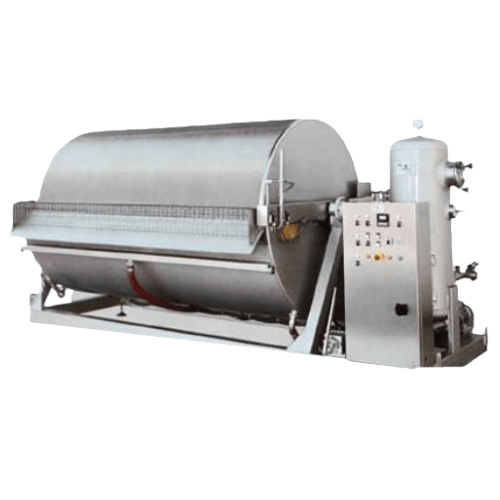

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF30 | — | — |
| Material | SS316 | — | — |
| Filtration Area | 30 | m2 | — |
| Drum Diameter | 2600 | mm | — |
| Drum Rotation Speed | 0.1-2 | r/min | Frequency Control |
| Filter Surface Effective Width | 3600 | mm | — |
| Agitation Frequency | 40 | times/min | — |
| Operating Vacuum | -0.035~-0.65 | Mpa | — |
| Main Motor Power | 2.2 | KW | — |
| Filter Cloth | PP | — | — |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 800 | mm | — |
| Discharge Capacity | 28 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | MPa | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1(2BE) | — | — |
| Motor Power | 37 | KW | — |
Pre-coated tank + diatomite transfer pump
预涂罐+硅藻土输送泵
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Precoat Tank | 1000 | — | — |
| Power | 2.2 | KW | — |
| Diatomite Transfer Pump | 2.2 | KW | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | Made in China | — | — |
| Reduction Gear | China's famous brand | — | — |
| Motor | China's famous brand | — | — |
