SS316-1m²-Pre-coating Vacuum Drum Filter
Basic Information
Model
JX-GF1-SS316
Unit
set
Category
Pre-coating Vacuum Drum Filter
Delivery Time
30 Days
Package Size
1300x1400x1100 mm
Package Weight
400 KG

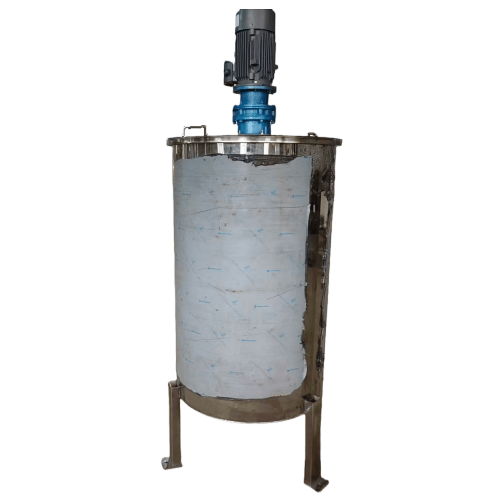

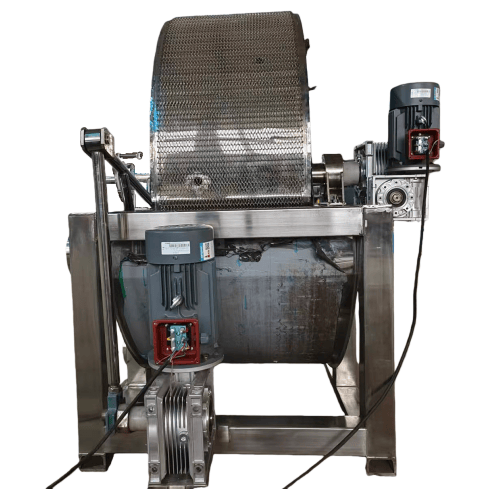

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF1 | — | — |
| Material | SS316 | — | — |
| Filtration Area | 1 | m2 | — |
| Drum Diameter | 1200 | mm | — |
| Drum Rotation Speed | 0.13-0.79 | r/min | Frequency control |
| Filter Surface Effective Width | 300 | mm | — |
| Agitation Frequency | 40 | times/min | — |
| Operating Vacuum | -0.035~-0.65 | Mpa | — |
| Main Motor Power | 0.75 | KW | — |
| Filter Cloth | PP | — | — |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 300 | mm | — |
| Discharge Capacity | 3 | m³/h | — |
| Operating Pressure | ≤-0.09 | MPa | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1(2BV5131) | — | — |
| Motor Power | 3 | KW | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | Made in China | — | — |
| Reduction Gear | China's famous brand | — | — |
| Motor | China's famous brand | — | — |
