SS316-16-Tubular Filter
Basic Information
Model
JX-FHL-18
Unit
set
Category
Tubular Filter
Delivery Time
30 Days
Package Size
3100x1450x1850 mm
Package Weight
680 KG

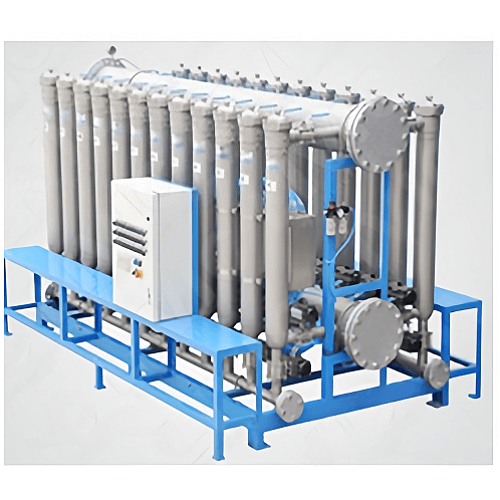

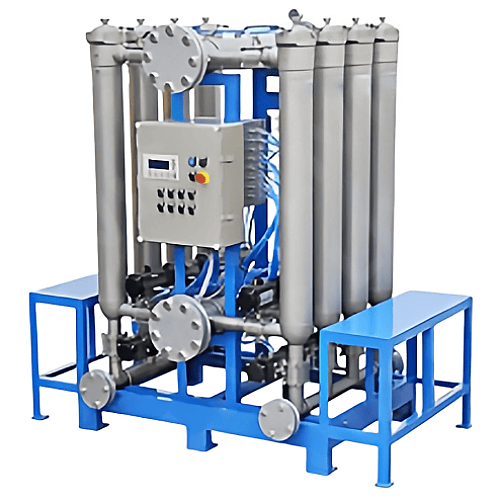

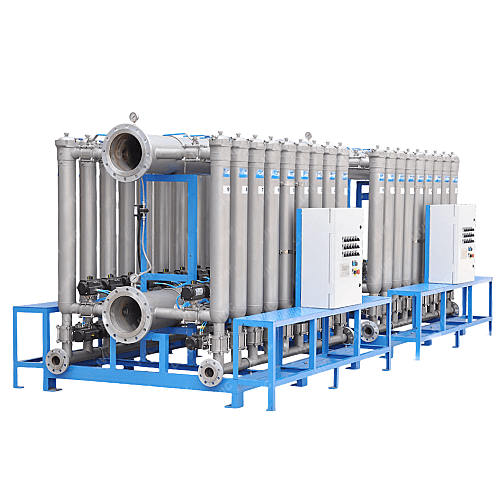

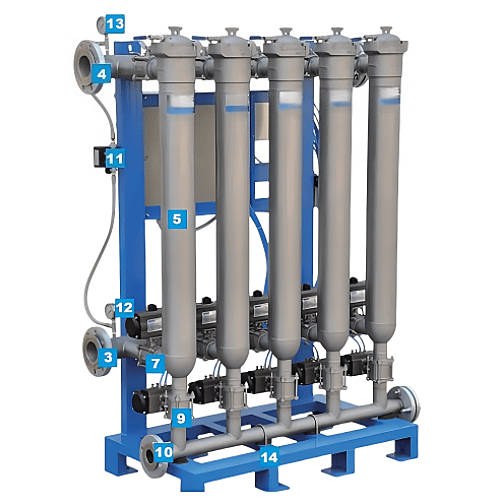

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-FHL-18 | — | — |
| Processing Capacity | 540 | m3/h | — |
| Material | SS316 | — | — |
| Hydraulic Loss | <0.01 (Under clean conditions) | Mpa | — |
| Pressure Test | 1.25 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | ≤80℃ | ℃ | — |
| Dimensions (LWH) | ~3000*1350*1750 | mm | — |
| Total Weight | ~650 | kg | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Material | SS316 | — | Wedge wire screen |
| Filtration Accuracy | 60 | um | — |
| Screen Quantity | 18 | pcs | Each filter has a filtration area of 0.267 square meters |
Control Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rated Power | 0.37 | KW | Total power of the electrical control cabinet |
| Rated Voltage | 220/50HZ | V | Customizable |
| Control System | Siemens PLC control system with 7-inch touch screen | — | — |
| Control Mode | Differential pressure control | — | — |
| Control Method | Pneumatic | — | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN250 | — | See drawing |
| Outlet | DN250 | — | See drawing |
| Drain Port | DN50 | — | See drawing |
| Flange Connection Standard | ANSI/DIN、SO/RF | — | See drawing |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Bolt Material | Customizable | — | — |
| Solenoid Valve | AIRTAC or equivalent | — | — |
| Ball Valve | Shanghai Zhaosen brand or equivalent | — | — |
| Differential Pressure Transmitter | Shanghai brand/Legend or equivalent | — | — |
Price
$36808
per set
