SS316-1500-Belt Type Pres
Basic Information
Model
JX-YA-1500-SS316
Unit
set
Category
Belt Filter Press
Delivery Time
30 Days
Package Size
4300x1900x1950 mm
Package Weight
6620 KG

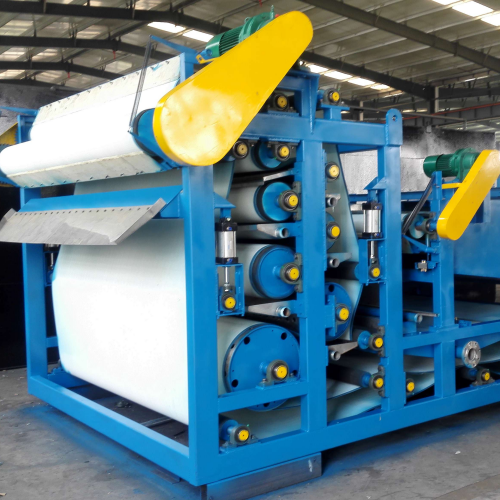

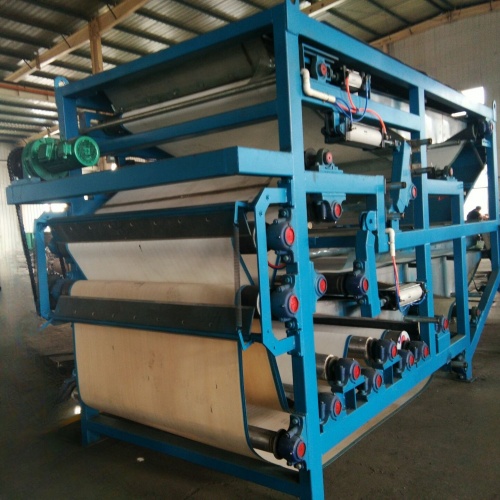

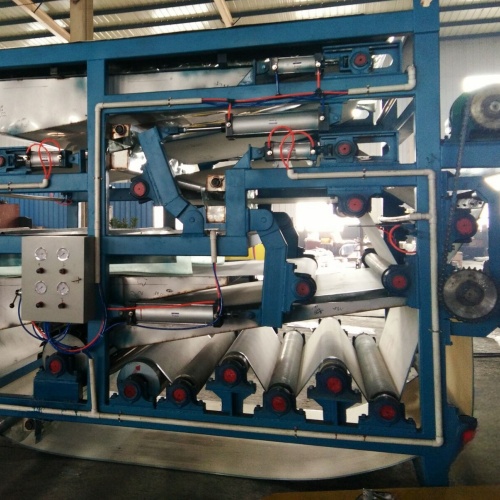

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-YA-1500 | — | — |
| Bandwidth | 1500 | mm | — |
| Processing Capacity | ~8-15 | m³/h | — |
| Filter Belt Flushing Water Pressure | 0.4-0.5 | Mpa | — |
| Tension Air Pressure | 0.25 | Mpa | — |
| Filter Belt Speed | 1.3~7.8 | m/min | — |
| Feed Moisture Content | ≈99 | % | — |
| Filter Cake Moisture Content | ≤80 | % | — |
| Dimensions | See drawing | mm | — |
Structural Composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Main Material | SS316 | — | — |
| Frame | Carbon steel or stainless steel | — | — |
| Filter Belt | Polyester nylon, polyester monofilament | — | — |
| Cylinder | Assembly | — | — |
| Correction Device | Mechanical valve | — | — |
| Cleaning Device | Flushing pipes, nozzles, and pumps | — | — |
| Other Configurations | Assembly | — | — |
Drive Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | PLC, frequency converter, pneumatic control cabinet | — | — |
| Host Power | 2.2+1.1 | KW | Main Drive Motor：Concentration Section 1.1KW Pressure Section：2.2KW |
Price
$36665
per set
