SS316-131-Sludge Dewatering Press
Basic Information
Model
JX-DL-131
Unit
set
Category
Sludge Dewatering
Delivery Time
30 Days
Package Size
1970x830x1370 mm
Package Weight
300 KG

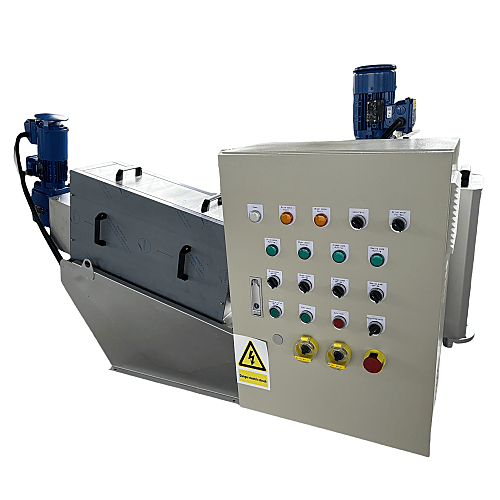

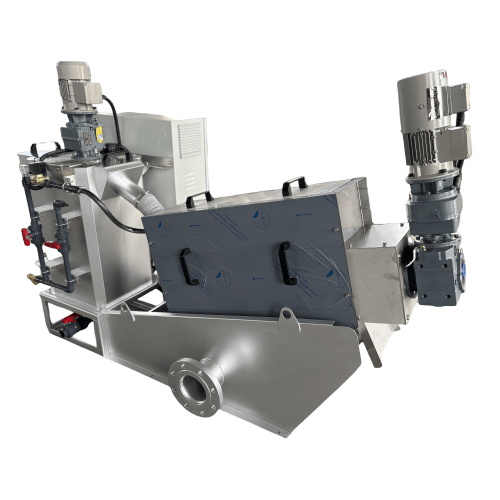

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DL-131 | — | — |
| Feeding Capacity | 10-14 | kg/h | — |
| Material | SS316 | — | — |
| Dia.*Length | DN130x1180mm | mm | — |
| Qty | 1 | — | — |
| Control Method | Each screw can be open or stop independently | — | — |
| Dewatering Type | Grab handle cover | — | — |
| Equipment Weight | ~250 | KG | — |
| Equipment Size | L1830mm× W730mm× H1180mm | mm | — |
Screw Axis
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS316 | — | — |
| Dia.*Length | φ120x1135mm | mm | — |
| Qty | 1 | — | — |
| Hardness | 1100 | HV | — |
Water Receiving Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | 780mmx360mmx210mm | mm | — |
| Material | SS316 | — | — |
| Filtrate Outlet | DN100 | — | — |
Flocculation Mixing Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | 340mmx340mmx600mm | mm | — |
| Qty | 1 | — | — |
| Material | SS316 | — | — |
| Volume | 0.07 | m3 | — |
| Mixer | Qty:1 set, material :SS316 | — | — |
| Sewage Inlet | DN25 | — | — |
| Overflow Port | DN50 | — | — |
| Dosing Port | DN15 | — | — |
| Vent | DN25 | — | — |
Support Frame
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | 1490mmx710mmx510mm | mm | — |
| Qty | 1 | — | — |
| Material | SS316 | — | — |
Driving Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 0.18 | KW | — |
| Protection Class | IP55 | — | — |
| Insulation Class | F | — | — |
| Qty | 1 | — | — |
| Rotary Speed | 2.04-5.1 | r/min | — |
| Reduction Ratio | 257 | — | — |
| Brand | Chinese famous brand | — | — |
Mixing Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 0.18 | KW | — |
| Protection Class | IP55 | — | — |
| Insulation Class | F | — | — |
| Qty | 1 | — | — |
| Rotary speed | 26 | r/min | — |
| Reduction Ratio | 53.76 | — | — |
| Brand | Chinese famous brand | — | — |
Cleaning Device
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | Fan-shaped water column | — | — |
| Pressure | 0.2 | Mpa | — |
| Cleaning Water Inlet | DN15 | — | — |
| Spray Nozzle | Qty:6pcs | — | — |
| Spray Pipe | Size:DN15 | — | — |
Electron Magnetic Valve
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pipe Diameter | DN15 | — | — |
| Qty | 1 | — | — |
| Protection Class | IP65 | — | — |
| Brand | Chinese famous brand | — | — |

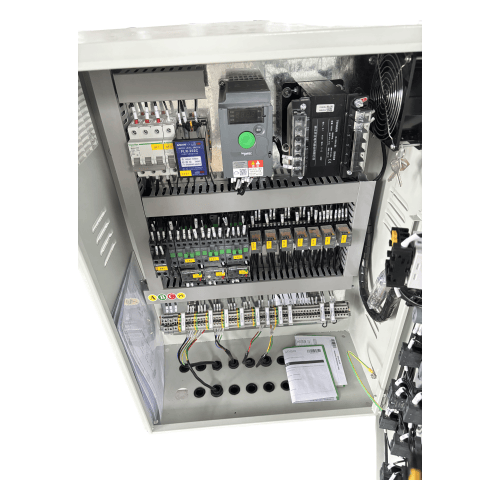

Control Cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | Carbon steel with plastic lining | — | — |
| Brand | Schneider | — | — |
Liquid-level Switch
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | HS-3A | — | — |
| Material | Engineering plastics | — | — |
| Size | φ60 | mm | — |
| Brand | KACON | — | — |
Price
$6240
per set
