SS316-1200-Pressing Sieve Bend Screen
Basic Information
Model
JX-KDS-Y1200-SS316
Unit
set
Category
Sieve Bend Screen
Delivery Time
30 Days
Package Size
2500x1300x1800 mm
Package Weight
1180 KG

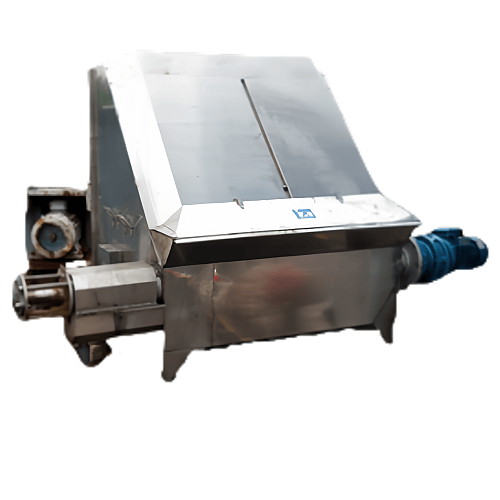

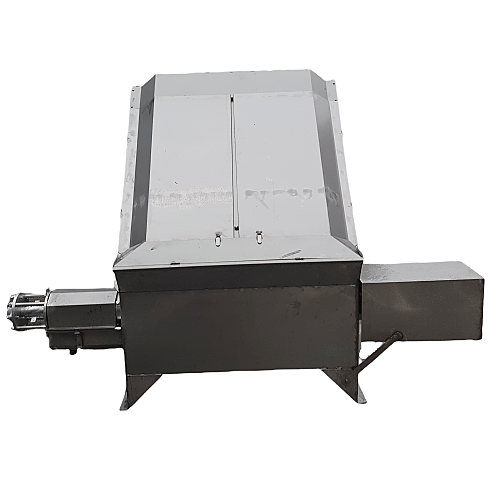

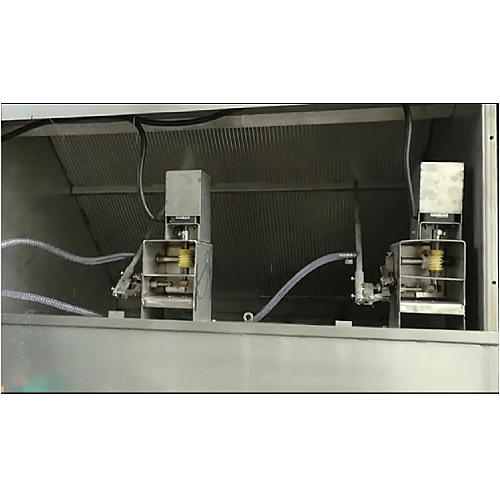

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Equipment Specification | JX-KDS-Y1200 | — | — |
| Equipment Material | SS316 | — | — |
| Processing Capacity | ~25 | m³/h | — |
| Equipment Weight | ~1100 | KG | — |
| External Dimensions | As per drawing | mm | — |
Sieve surface
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration accuracy | Refer to the specification in the price list | — | — |
| Material | SS316 | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Water Inlet | As per drawing | — | — |
| Flange connection | As per drawing | — | — |
| Spray Device | YES | — | — |
| Vibrating Motor | YES | KW | Vibration motor power：0.25kw、Pressing motor: 4kw、Cleaning motor: 2*0.25kw |
Price
$13780
per set
