SS316-12-Duplex Bag Filter Housing
Basic Information
Model
JX-MBFH-D12
Unit
set
Category
12-Bag Filter Housing
Delivery Time
30 Days
Package Size
3100x1100x2250 mm
Package Weight
1400 KG

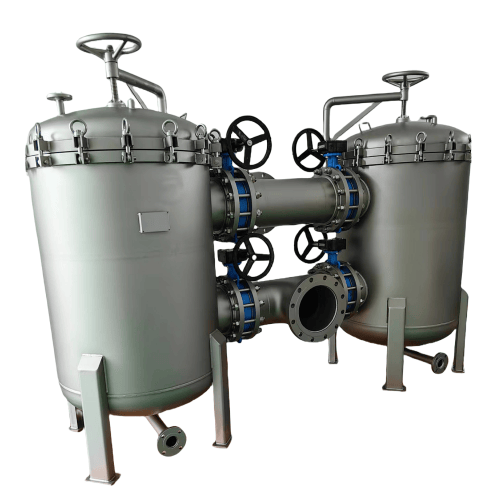

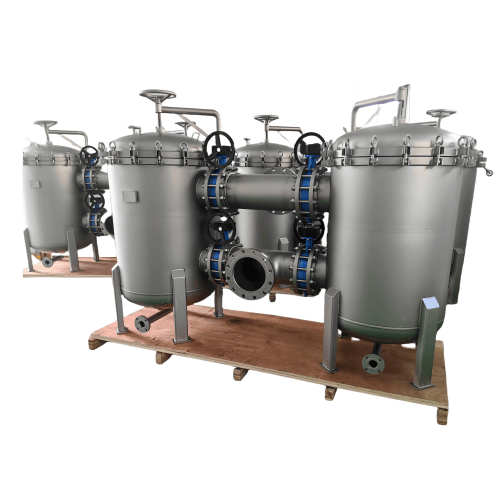

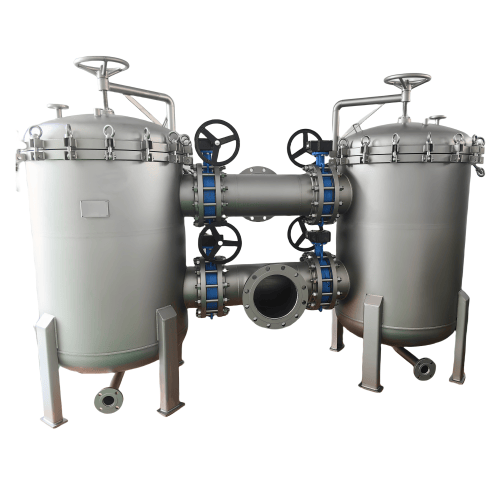

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-MBFH-D12 | — | — |
| Filtration Rating | As per customer requirement | — | — |
| Max. Working Pressure | 0.6 | — | — |
| Operating Temperature | 90 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Material | SS304 | — | — |
| Filter Bag Material | PP/PET/PA/PTFE | — | — |
| Sealing Material | EPDM, Silicone, Fluorocarbon (Viton), Food-grade Available | — | — |
| Filter Bag Size | 180*810 | — | Qty:24pcs |
| Connection Type | Customizable | — | — |
| Lid Opening Method | Customizable | — | — |
| Surface Treatment | Customizable | — | — |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | ≤0.1 MPa (Initial) | MPa | — |
| Filtration Efficiency | ≥99.9% (Nominal Rating) | — | — |
| Cleaning Method | Manual Removal | — | — |
Price
$17850
per set
