SS304-Z900-Channel Drum Screens
Basic Information
Model
JX-GF-Z900-304
Unit
set
Category
Channel Drum Screens
Delivery Time
30 Days
Package Size
4560x1000x1300 mm
Package Weight
900 KG

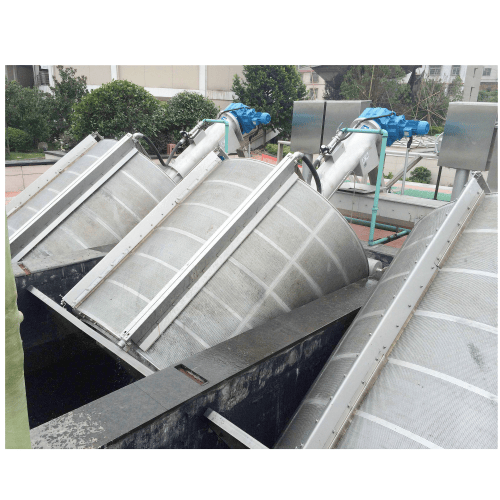

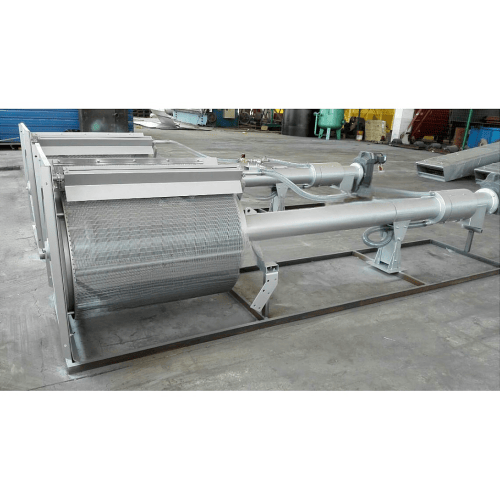

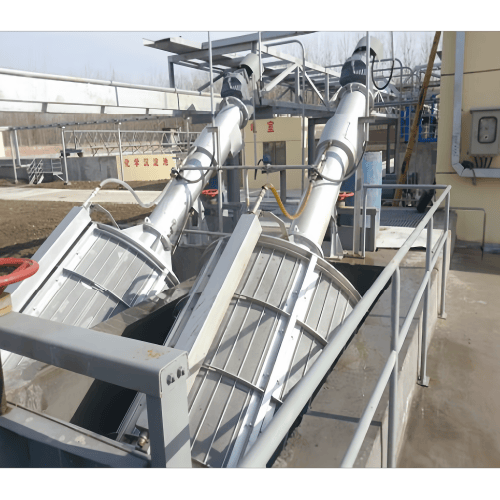

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-Z900 | — | — |
| Housing Material | SS304 | — | — |
| Flow Rate | Customizable | m3/h | — |
| Channel Width | Customizable | mm | — |
| Equipment Width | 900 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | 900*1000 | — | — |
| Screen Drum Speed | ≈8 | r/min | — |
| Screen Drum Slot Size | Customizable | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Backwash cleaning pipe | DN25 | — | — |
| Drive Motor | 0.75 | KW | — |
Price
$9800
per set
