SS304-Cartridge Filter Housing
Basic Information
Model
JX-HPCF-1(30")-SS304
Unit
set
Category
Cartridge Filter Housing
Delivery Time
30 Days
Package Size
300x300x1420 mm
Package Weight
95 KG

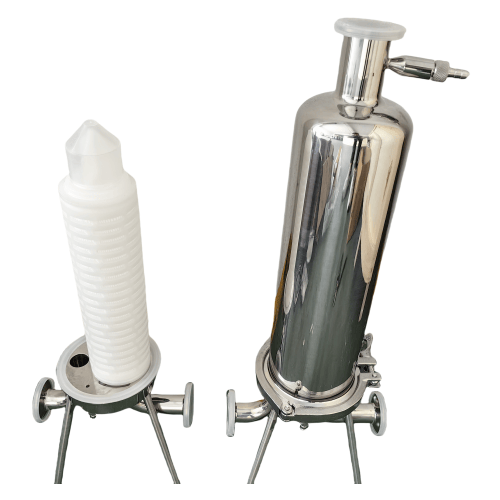

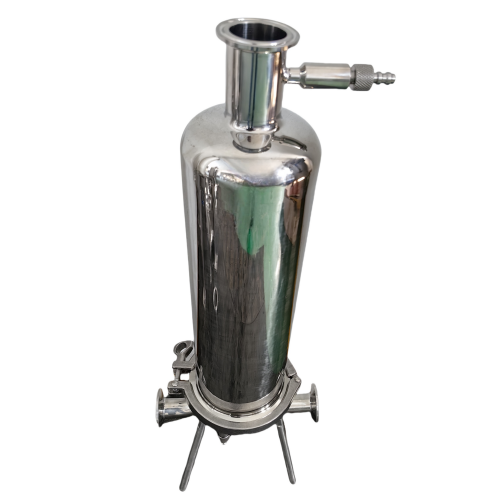

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | JX-HPCF-1 | — | — |
| Operating Flow Rate | Refer to the specification in the price list | m3/h | — |
| Design Pressure | 1.0 | MPa | — |
| Pressure Test | 0.6 | MPa | — |
| Hydraulic Loss | <0.1 | MPa | — |
| Maximum Pressure Loss | 0.08 | MPa | — |
| Housing Material | SS304 | — | — |
| Number of Units | 1 | — | 30“ |
Filter screen
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | PES/PP/Customized | — | — |
| Filter Precision | Customized | μm | — |
| Number of Filter Cores | 1 | pcs | 30" |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flange Connection Size | See drawing | — | ANSI/JIS/GB |
| Drainage Port | See drawing | — | — |
| Bolt Material | See drawing | — | — |
