SS304-600-Sieve Bend Screen
Basic Information
Model
JX-KDS-600-304
Unit
set
Category
Sieve Bend Screen
Delivery Time
30 Days
Package Size
1300x750x1350 mm
Package Weight
160 KG

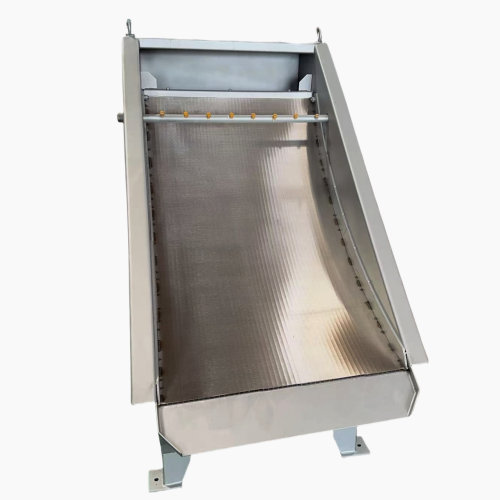

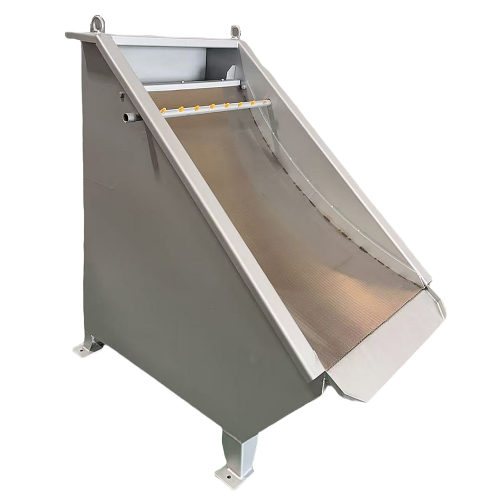

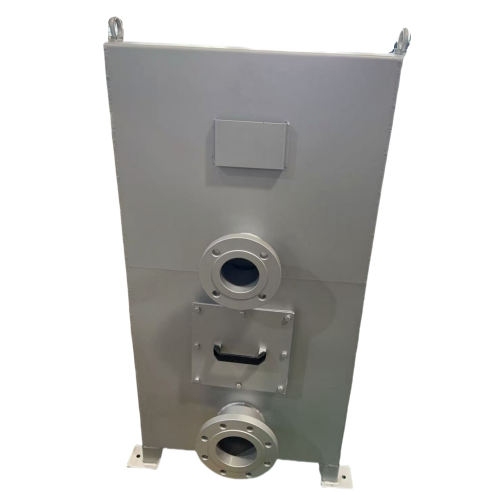

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Equipment Specification | JX-KDS-600 | — | — |
| Equipment Material | SS304 | — | — |
| Processing Capacity | 15-20 | m³/h | — |
| Equipment Weight | ~130 | KG | — |
| External Dimensions | See drawing | mm | — |
Sieve surface
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration accuracy | 1mm | — | Customizable |
| Material | SS304 | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Water Inlet | As per drawing | — | — |
| Flange connection | As per drawing | — | — |
| Spray Device | YES | — | — |
| Vibrating Motor | NO | KW | — |
Price
$2300
per set
